Article 3.WRH

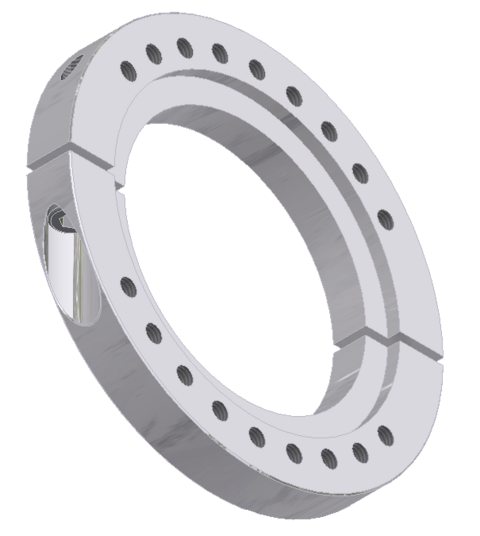

splited balancing ring, type 3.WRH with treaded holes (axial)

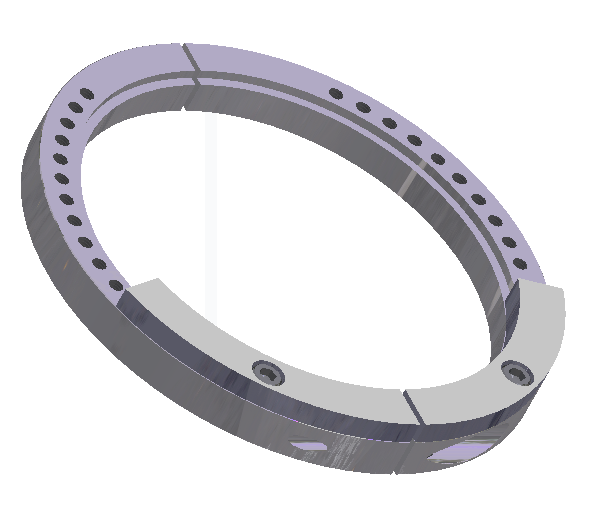

splited balancing ring, type 3.WRH with treaded holes (axial) and additional balancing segments

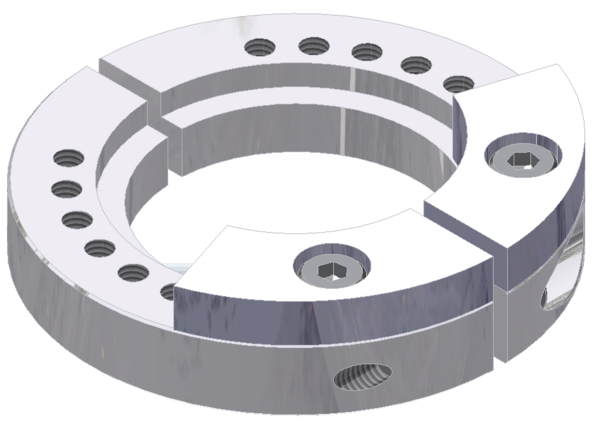

splited balancing ring, type 3.WRH with treaded holes (axial) and additional balancing segments

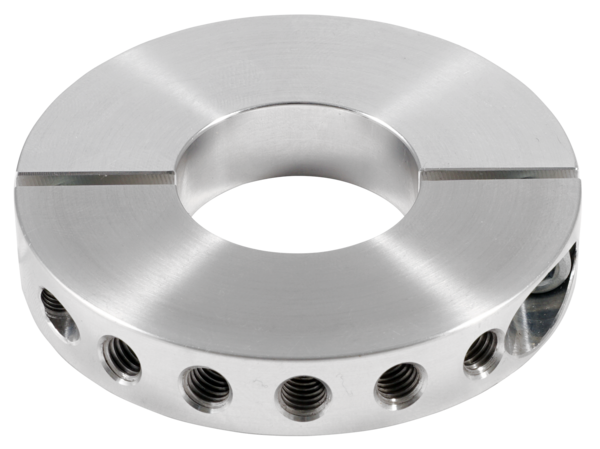

splited balancing ring, type 3.WRH with treaded holes (radial)

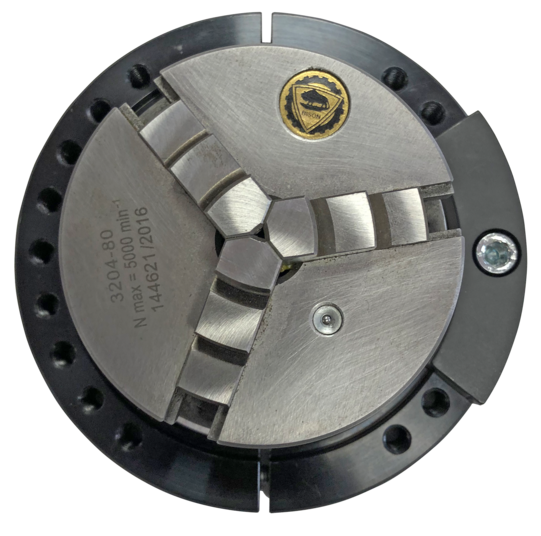

Chuck with balancing ring type 3.WRH and an additional segment.

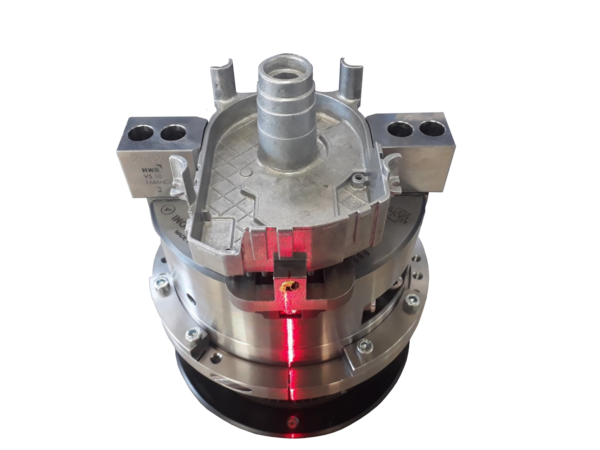

Clamping device for cast parts with balancing ring type 3.WRH and an additional segment.

Splited balancing rings with fixed-location equalization

For additional assembling at tools and chucks

Type
3.WRH.A - Threaded holes, axial
3.WRH.R - Threaded holes, radial

  • Two half rings, for individual assembling.
  • Threaded holes for small unbalance compensations.
  • Threaded holes axial or radial.
  • Additional segments in different dimensions can be screwed on if large unbalance has to be compensated.

  • Customized sizes on request.



Catalog-# / Description

Order-# Description Inside-Ø [mm] Outside-Ø [mm]
1064447A 3.WRH.A.050.011.001 50 77
1063853A 3.WRH.A.080.039.001 80 110
1063903A 3.WRH.A.100.058.001 100 130
1063904A 3.WRH.A.125.087.001 125 155
1063905A 3.WRH.A.140.105.001 140 170
1063907A 3.WRH.A.160.135.001 160 190
1063906A 3.WRH.A.200.204.001 200 230
1064760A 3.WRH.A.220.310.001 220 280
1063908A 3.WRH.A.250.310.001 250 280
1063909A 3.WRH.A.315.482.001 315 345
1063910A 3.WRH.A.400.750.001 400 430
