Operating module Balancing electronic, BM50

Display for operation and visualization of balancing control units.

3.BM50

  • Display with touch screen
  • CAN-Bus data output
  • Short delivery time

Catalog-# / Description

Catalog-# Order-# Description

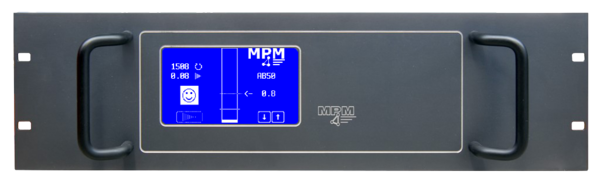

3.BM50P01.24 1016110A Adjustment module for AB50SM4 with 19" front panel

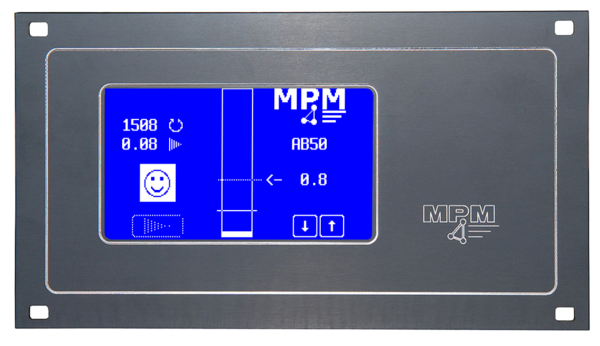

3.BM50P02.24 1016111A Adjustment module for AB50SM4 with 1/2 19" front panel
3.BM50M.24 1016109A Adjustment module for AB50SM4 in PROFILINE housing

Technical details

Technical data 3.BM50P01.24
Operating voltage 24 V=
Power consumption approx. 6 VA
Module interface 9-pin D-SUB connector for CAN bus
Software update Via RS232 interface
Operation Touchscreen
Dimensions W x H x D [mm] 19" 3U 482 x 134 x 72
Weight approx. 1 kg
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % relative humidity
Technical data 3.BM50P02.24
Operating voltage 24 V=
Power consumption approx. 6 VA
Module interface 9-pin D-SUB connector for CAN bus
Software update Via RS232 interface
Operation Touchscreen
Dimensions W x H x D [mm] 1/2 19" 3HE 241 x 134 x 72
Weight approx. 1 kg
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % relative humidity
Technical data 3.BM50M.24
Operating voltage 24 V=
Power consumption approx. 6 VA
Module interface 9-pin D-SUB connector for CAN bus
Software update Via RS232 interface
Operation Touchscreen
Dimensions W x H x D [mm] 225 x 190 x 70
Weight approx. 1,9 kg
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % relative humidity

Dimensional drawings

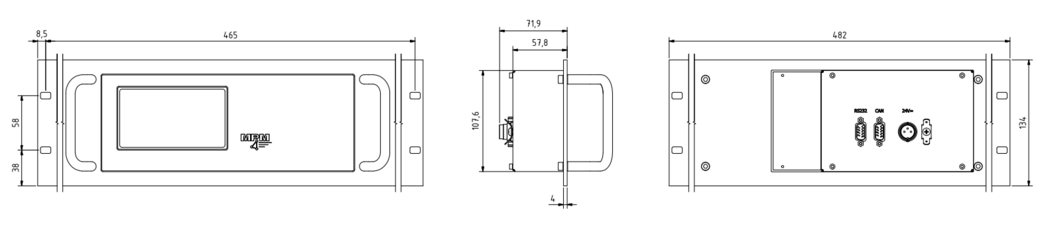

3.BM50P01.24

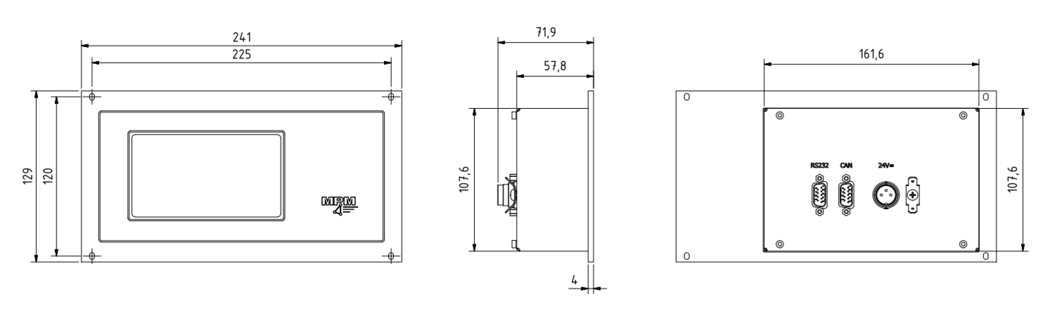

3.BM50P02.24

3.BM50M.24

AccessoryDescriptionArticle
Data cable, 9-pin 3.DKC.B09to product
Control cabinet modules AB50 3.AB50SM4to product
Surface-mounted balancers type ESB 3.ESBto product
Built-in balancers 3.ISBto product
