Operating module balancing electronic, BM340

Display for operation and visualization of balancing and GAP control units.

  • Graphic display with touch screen

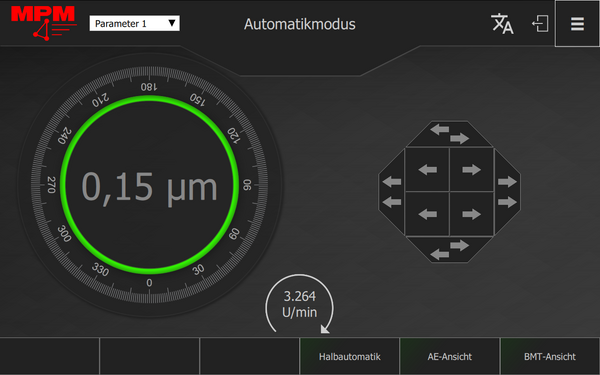

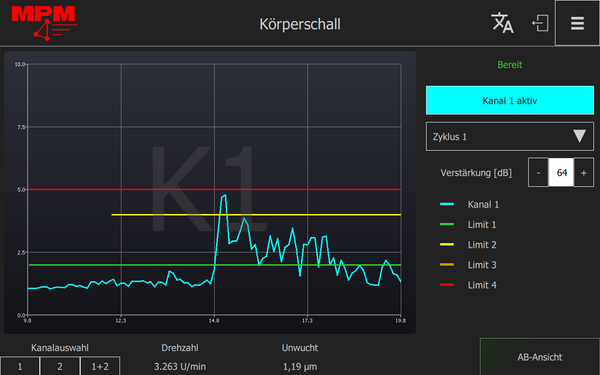

  • Balcon350 software for balancing and AE acoustic emission
  • 2 USB ports
  • CAN-Bus data output
  • Short delivery time

Catalog-# / Description

Catalog-# Order-# Description

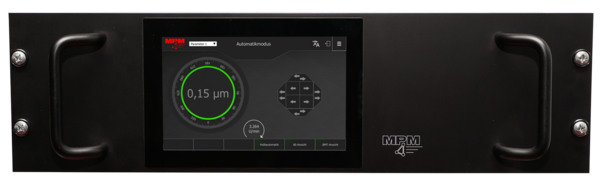

3.BM340P01.24 1057425A Operating module for AB340 with 19" front panel 482 x 134mm

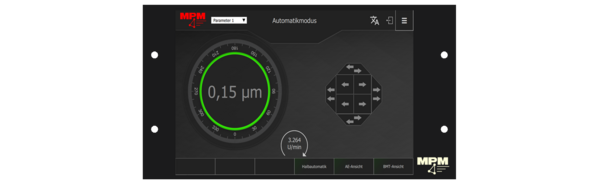

3.BM340P02.24 1057426A Operating module for AB340 with 1/2 19" front panel 241 x 134mm
3.BM340P02.24.01 1061705A Operating module for AB340 with 1/2 19" front panel 241 x 134mm

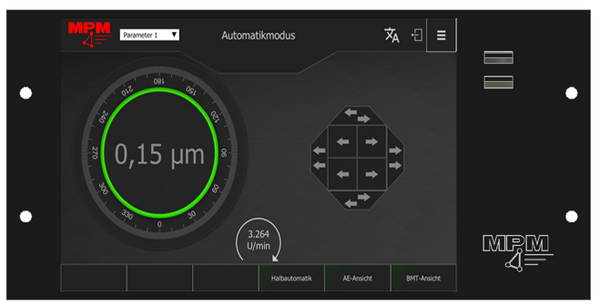

3.BM340P03.24 1055765A Operating module for AB340 with front panel 270 x 134mm

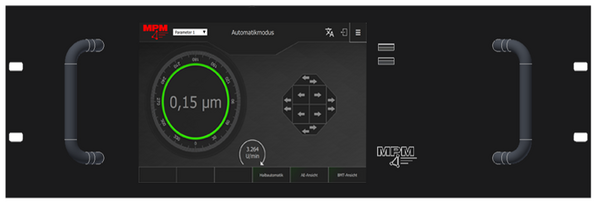

3.BM340P31.24 1057427A Operating module for AB340 with 19" front panel 482 x 158mm
3.BM340P32.24 1057431A Operating module for AB340 with 1/2 19" front panel 241 x 158mm

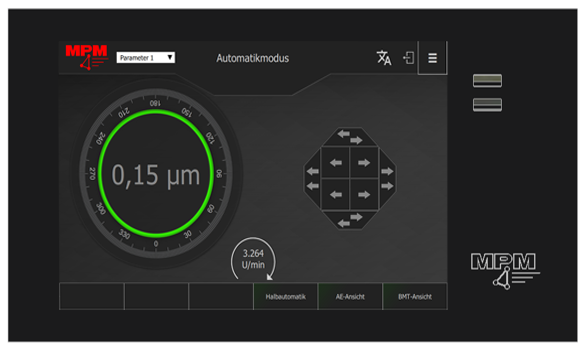

3.BM340P33.24 1057428A Operating module for AB340 with front panel 270 x 158mm

Technical details

Technical data 3.BM340P01.24 / 3.BM340P31.24
Operating voltage 24 V=
Power consumption approx. 80 VA
Module interface 9-pin D-SUB connector for CAN bus
Operation Touchscreen
Dimensions W x H x D [mm] 19" 482 x 134 x 77 - 3.BM340P01.24
Dimensions W x H x D [mm] 19" 482 x 158 x 72 - 3.BM340P31.24
Weight approx. 3 kg
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % relative humidity
Technical Data 3.BM340P02.24 / 3.BM340P02.24.01 / 3.BM340P32.24
Operating voltage 24 V=
Power consumption approx. 80 VA
Module interface 9-pin D-SUB connector for CAN bus
Operation Touchscreen
Dimensions W x H x D [mm] 1/2 19" 241 x 134 x 78 - 3.BM340P02.24
Dimensions W x H x D [mm] 1/2 19" 241 x 134 x 97 - 3.BM340P02.24.01
Dimensions W x H x D [mm] 1/2 19" 241 x 158 x 78 - 3.BM340P32.24
Weight approx. 3 kg
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % relative humidity
Technical data 3.BM340P03.24 / 3.BM340P33.24
Operating voltage 24 V=
Power consumption approx. 80 VA
Module interface 9-pin D-SUB connector for CAN bus
Operation Touchscreen
Dimensions W x H x D [mm] 270 x 134 x 72 - 3.BM340P03.24
Dimensions W x H x D [mm] 270 x 158 x 72 - 3.BM340P33.24
Weight approx. 3 kg
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % relative humidity

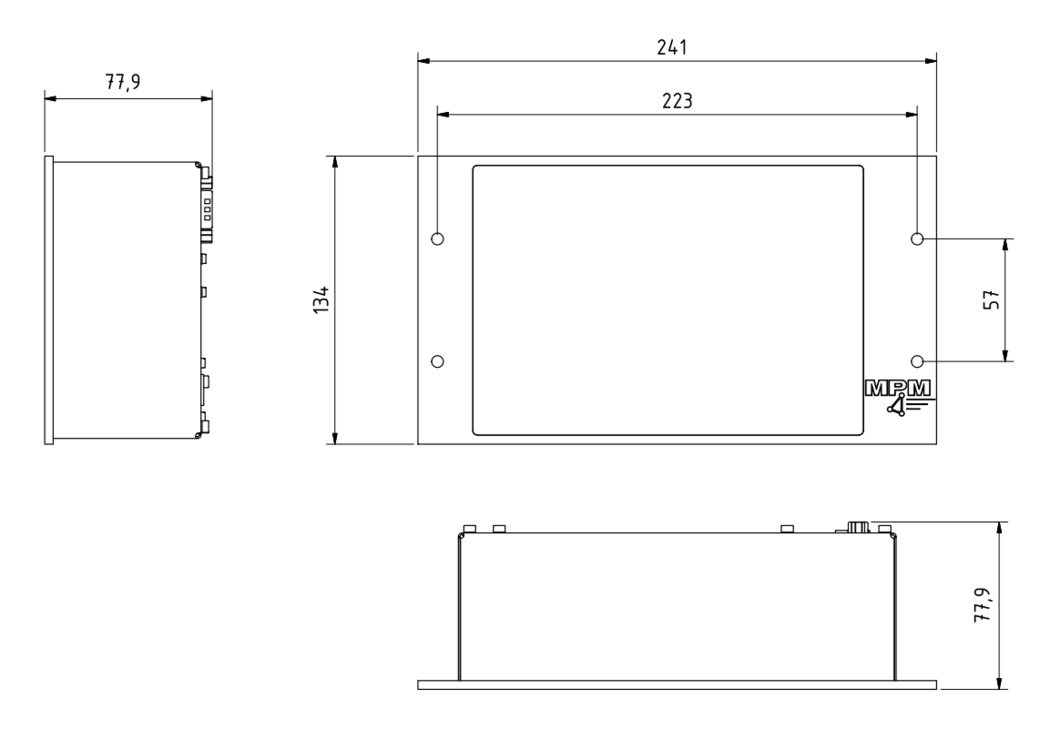

Dimensional drawings

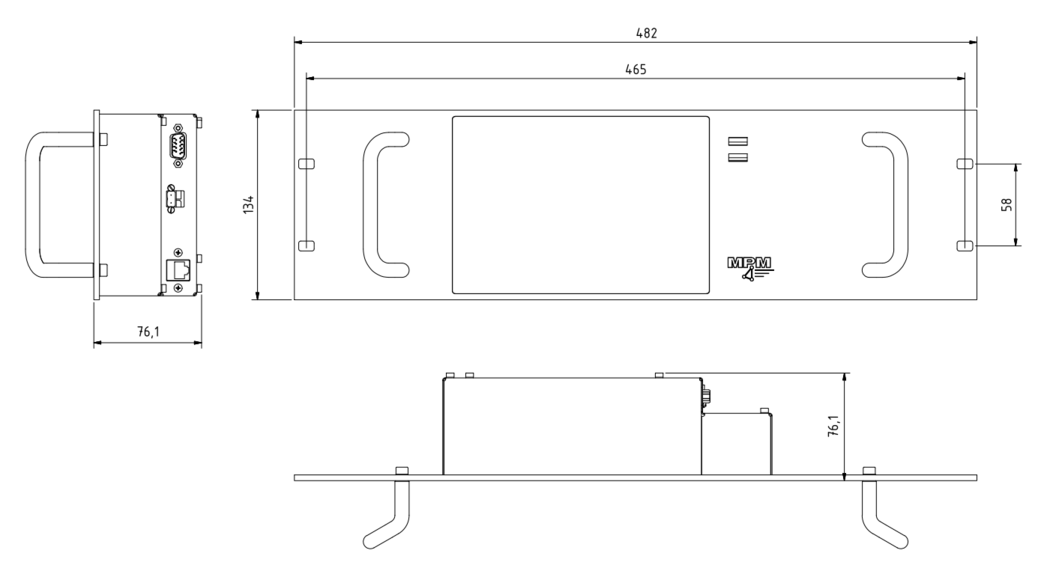

3.BM340P01.24

3.BM340P02.24

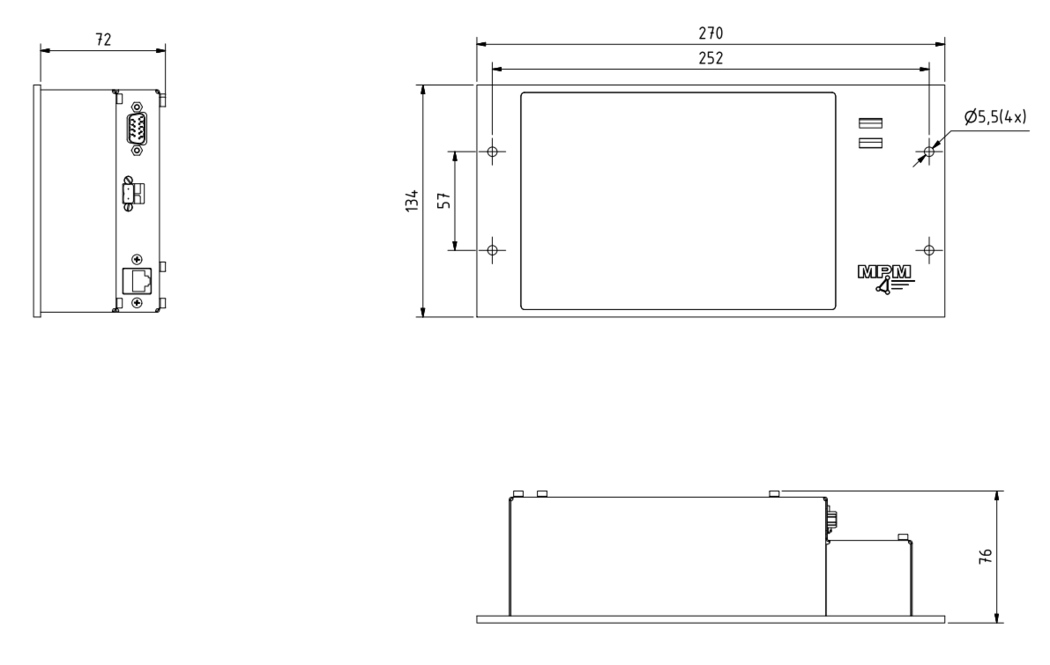

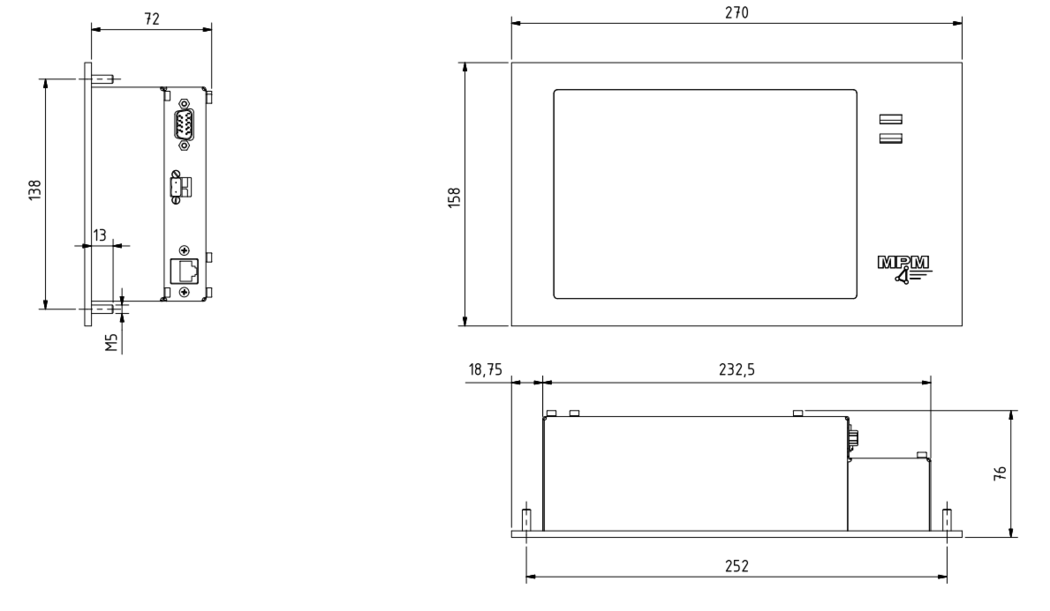

3.BM340P03.24

3.BM340P31.24

3.BM340P32.24

3.BM340P33.24

AccessoryDescriptionArticle
Data cable, 9-pin 3.DKC.B09to product
Control cabinet modules AB340 3.AB340SM3to product
Surface-mounted balancers type ESB 3.ESBto product
Built-in balancers 3.ISBto product
