Article 3.ASM.S8.03

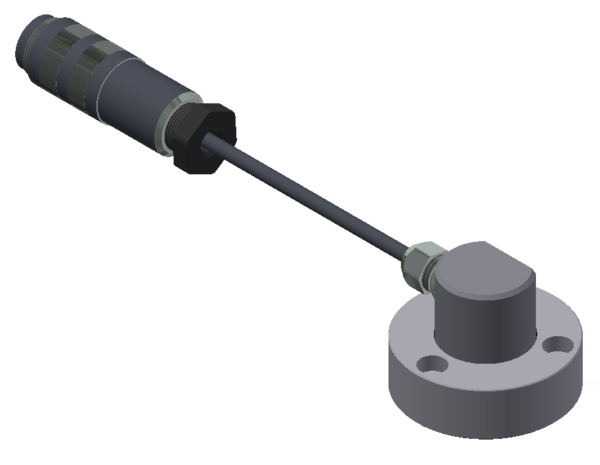

Sensor with contactless signal transmission - STATOR

For recording acoustic emission signals during the grinding process

With plug-compatible connection to the evaluation electronics.

Catalog-# / Description

Catalog-# Order-# Description
3.ASM.S8.03 1040973A STATOR

Technical data

Technical data
Dimensions sensor D x H Ø25 x 40mm

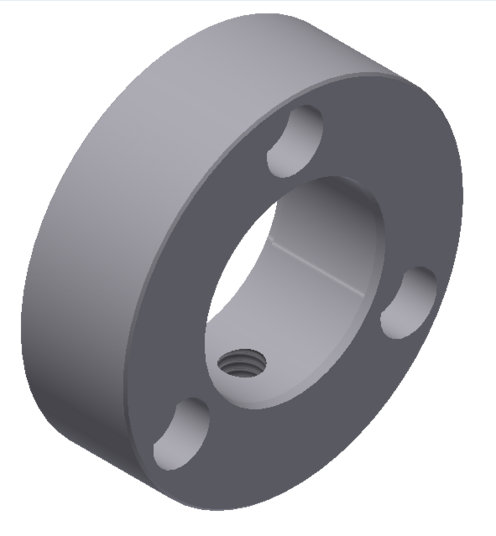

Dimensions POM-mounting ring D x H Ø48 x 15mm
Connection 7-way

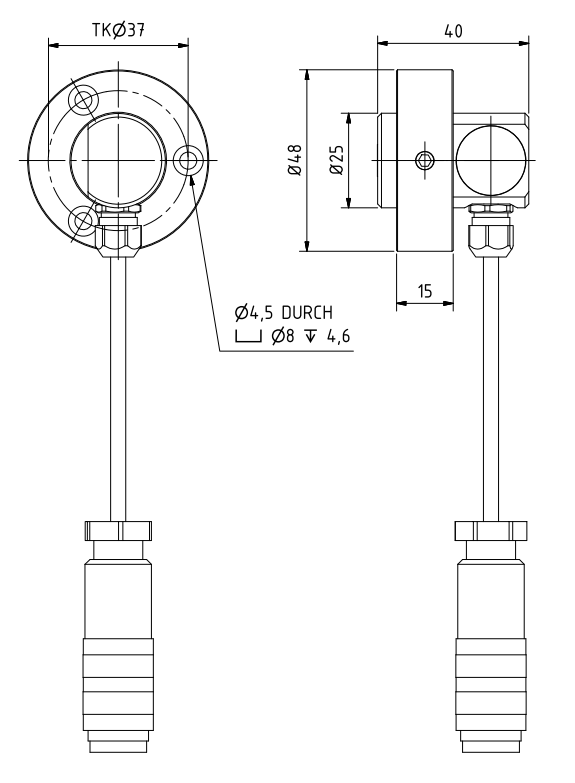

Dimensional drawings
