Article 3.ESB
Flange mounting device ESB collector
For all grinding machines
3.ESB-Collector
- For front mounting on the grinding machine flange
- For grinding wheel Ø of approx. 300-900mm
- Power and data transmission with collector
- Suitable for working speeds up to approx. 5000 rpm.
Depending on the respective balancing capacity required.
Reference:
Balancer up to Ø95mm max. 5000rpm
Balancer up to Ø114mm max. 2000rpm - Balancing capacities up to approx. 5.800gcm.
Catalog-# / Description
| Catalog-# | Order-# | Centering-Ø x height-[mm] | Balancing capacity [gcm] |
|---|---|---|---|
| 3.ESB-V.080A.095 | 1016627A | 95 x 102 | 800 |
| 3.ESB-V.135A.095 | 1016641A | 95 x 102 | 1350 |
| 3.ESB-V.170A.095 | 1016652A | 95 x 102 | 1700 |
| 3.ESB-V.250A.114 | 1066661A | 114 x 120 | 2500 |
| 3.ESB-V.330A.114 | 1066662A | 114 x 120 | 3300 |
| 3.ESB-V.430A.114 | 1065136A | 114 x 120 | 4300 |
| 3.ESB-V.580A.114 | 1066669A | 114 x 120 | 5800 |

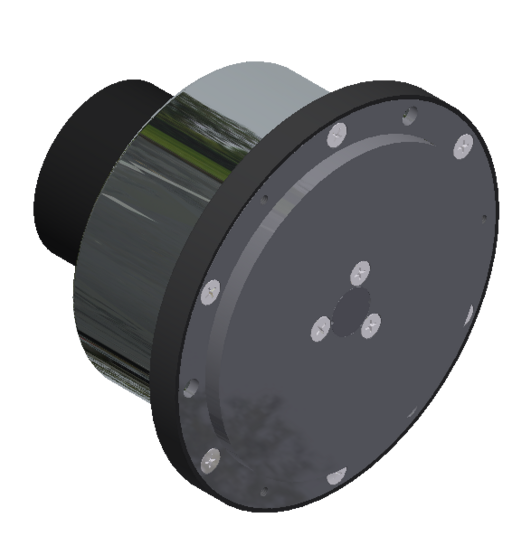

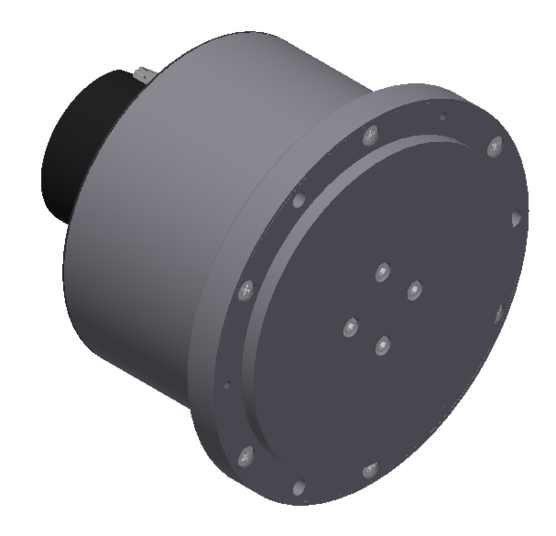

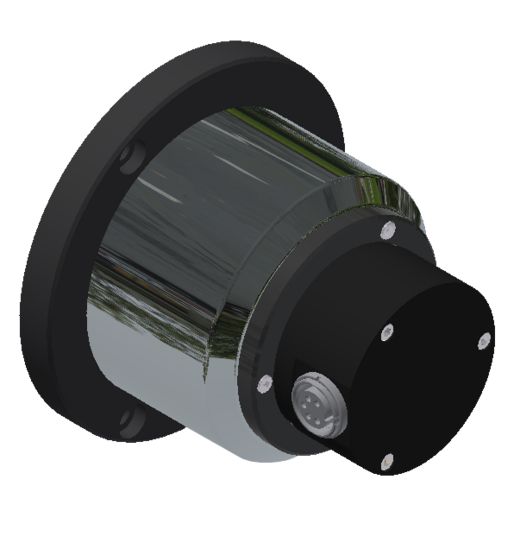

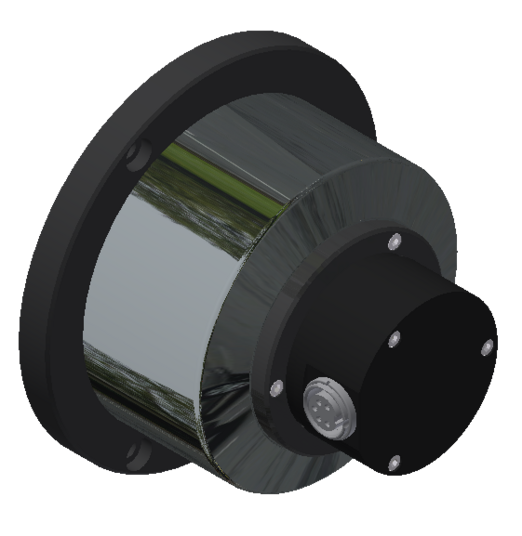

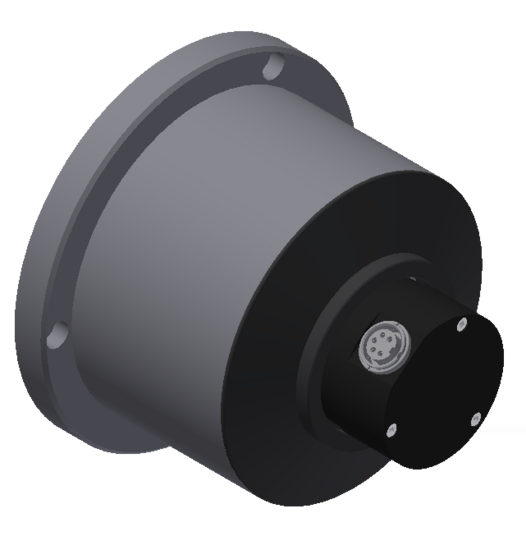

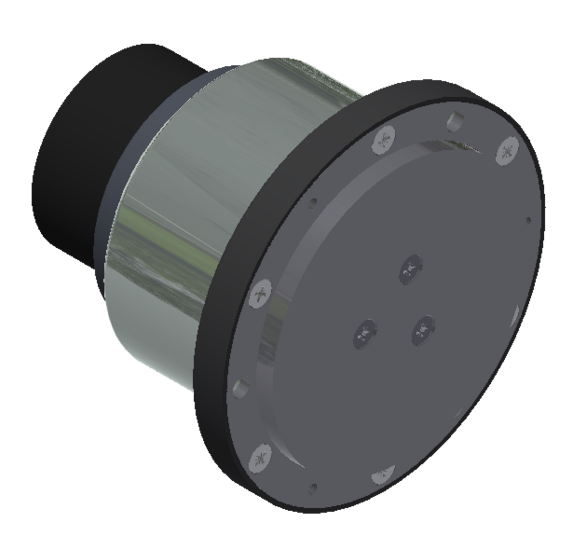

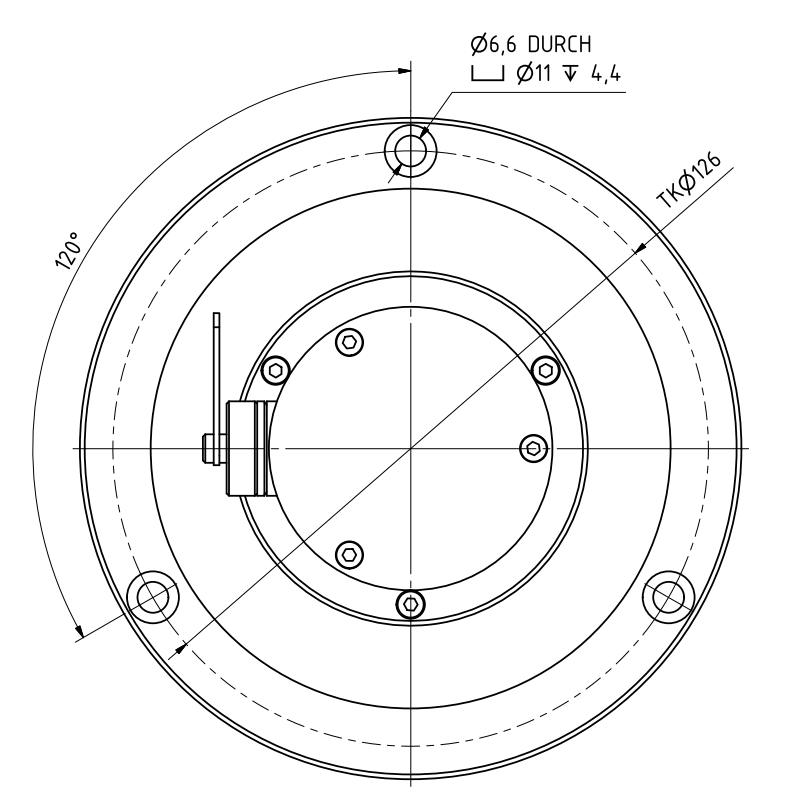

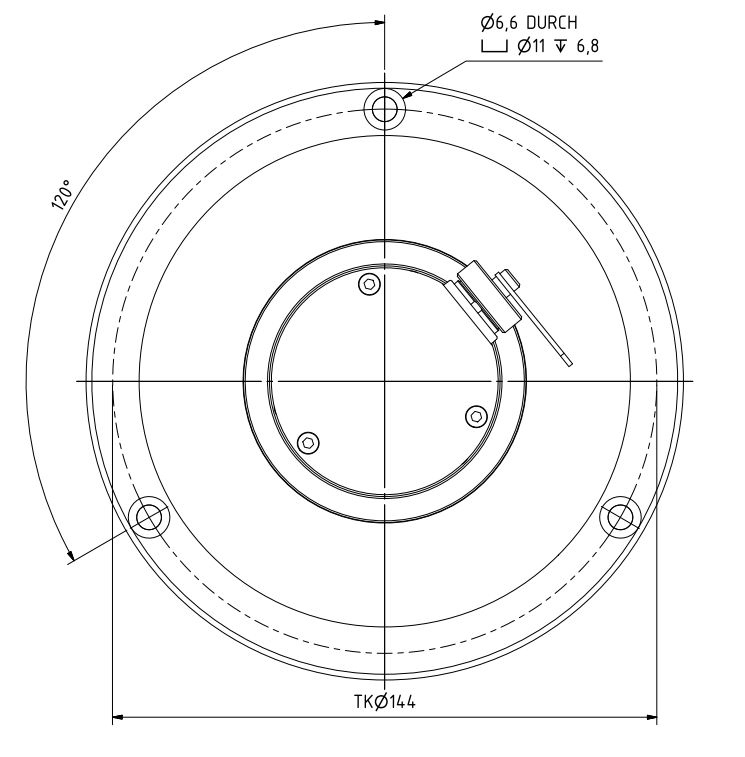

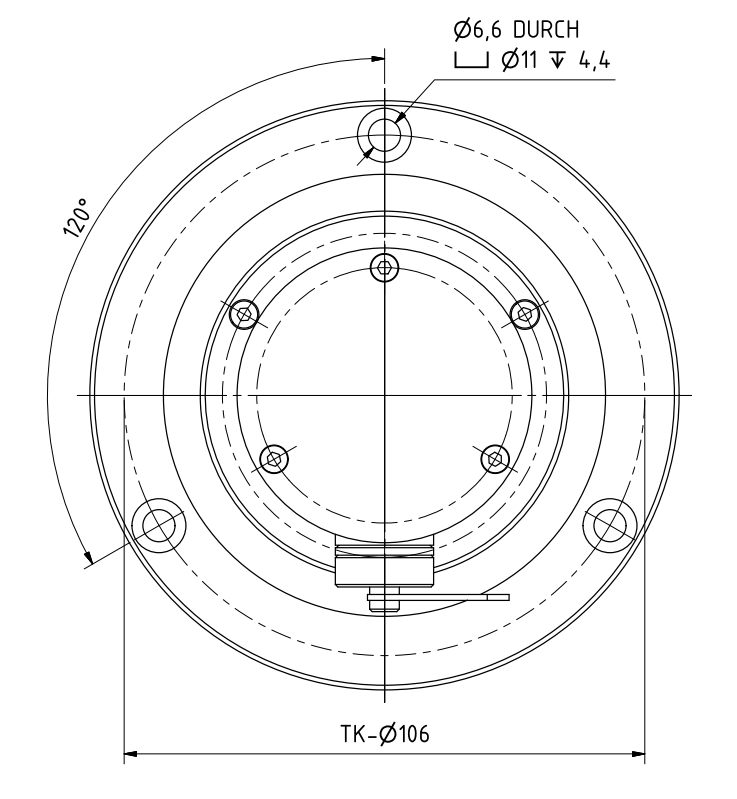

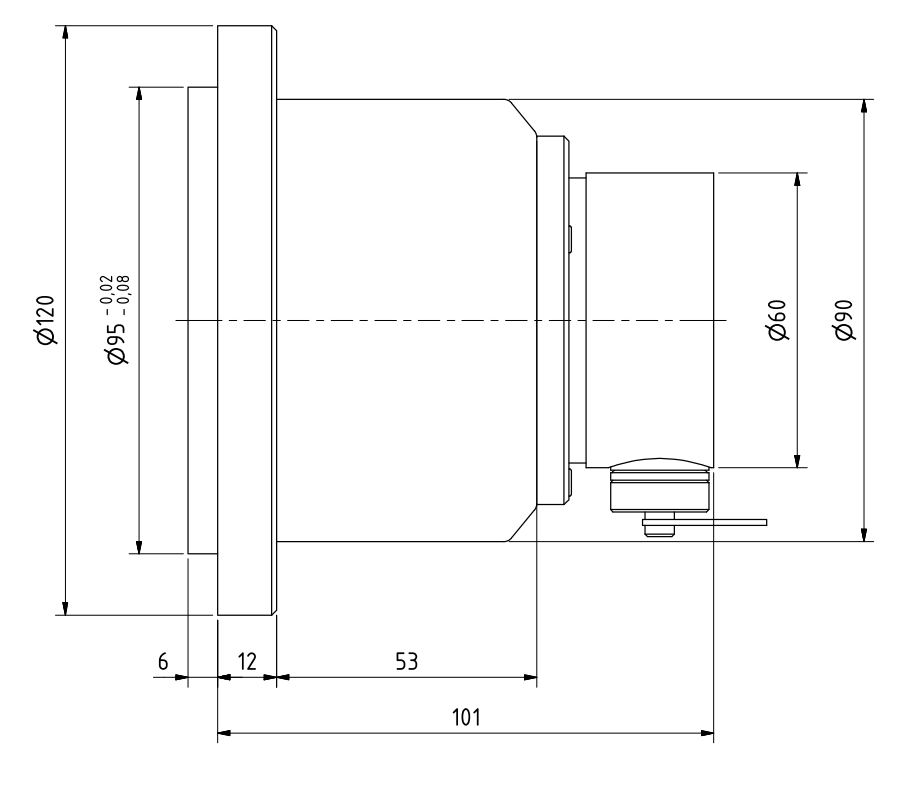

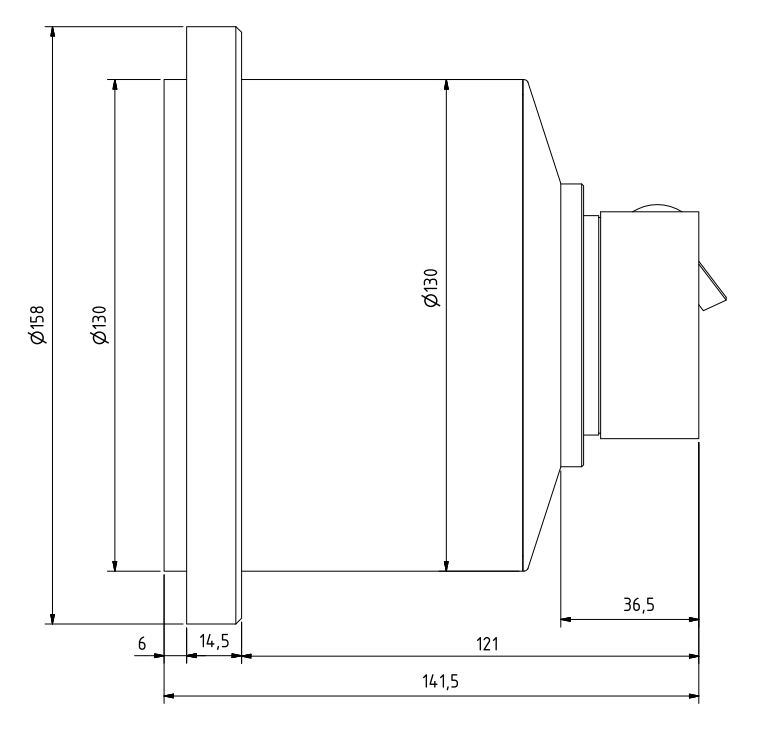

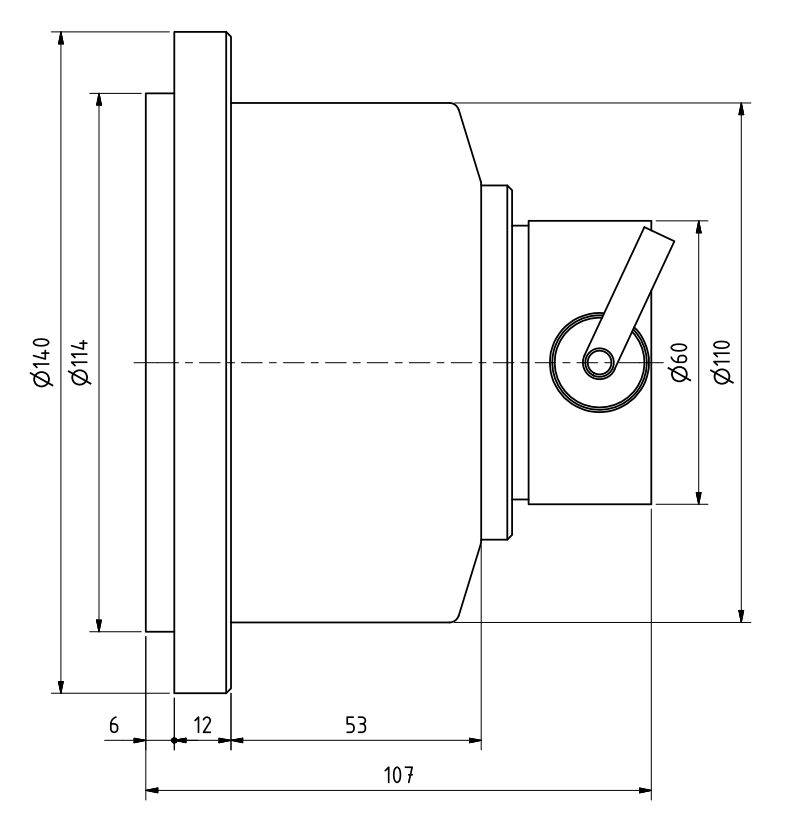

Dimensional drawings
Application example
| Accessory | Description | Article | |
|---|---|---|---|
 | Collector for ESB | 3.K.ESB | to product |
 |
Connection cable, 5-pin for ESB collector apparatuses Plug / Plug | 3.5xxSS | to product |
 | Vibration sensor | 3.PU | to product |
 | Automatic balancing systems | to product |
