Spindle mounting device ISB
For all grinding machines with
HSK grinding wheel holders
from HSK63 to HSK125

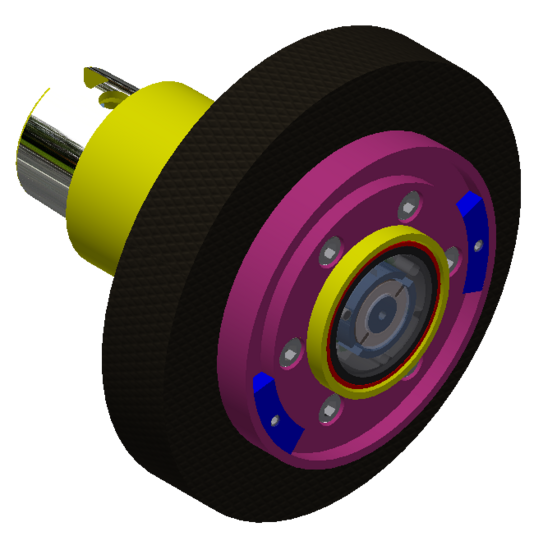

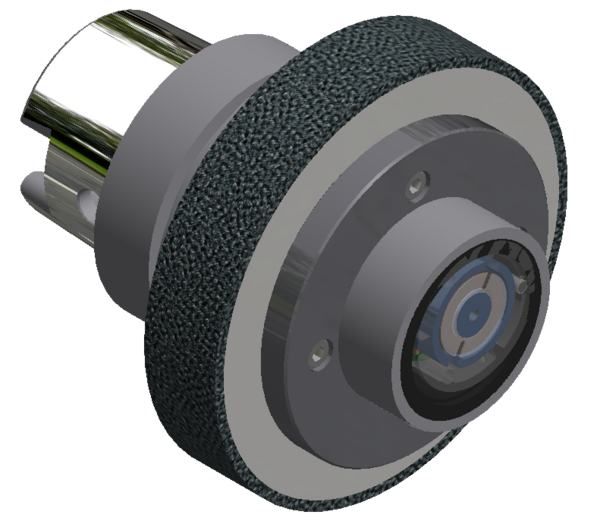

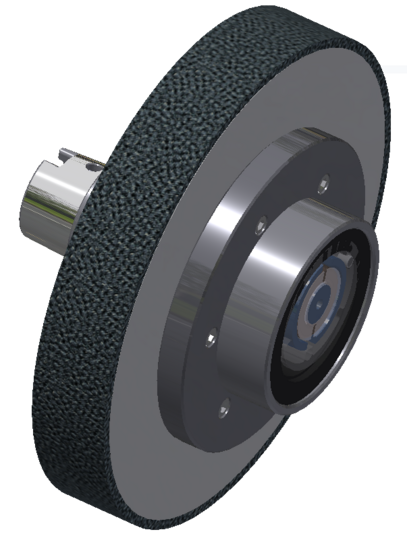

3.ISB design „C“
- With flange screwed to the spindle end face
- Power and data transmission at the front via integrated receiver
- The devices are moment-free, without self-unbalance.
- Power and data transmission, contactless (CONLESS),
- Type "D" = digital absolute balancer in 1- and 2-plane version.
- For precise, automatic balancing within seconds.
- The devices can be equipped with acoustic emission sensors (AE).
- Suitable for working speeds up to approx. 15 000 rpm.
- Depending on the respective balancing capacity required
- Balancing capacities up to approx. 10 000gcm.
- Neutral position of the balancing masses
Catalog-# / Description
| Catalog-# | Order-# | Centring-Ø x length-[mm] | For HSK | Balancing capacity [gcm] |
|---|---|---|---|---|
| 3.ISB.013C.042.CGA.001 | 1005336A | 42 x 135,5 | 63 | 130 |
| 3.ISB.080C.050.C.002 | 1061781A | 50 x 160 | 63 | 800 |
| 3.ISB.050C.090.C.001 | 1061782A | 90 x 85 | 63 | 500 |
| 3.ISB.013C.042.C.002 | 1036613A | 42 x 133 | 80 | 130 |
| 3.ISB.041C.042.C.001 | 1036607A | 42 x 172 | 80 | 410 |
| 3.ISB.070C.042.C.001 | 1041102A | 42 x 202 | 80 | 700 |
| 3.ISB.035C.050.C.001 | 1037934A | 50 x 144 | 80 | 350 |
| 3.ISB.050C.050.C.90.001 | 1061783A | 50 x 144 | 80 | 500 |
| 3.ISB.045C.055.C.002 | 1061784A | 55 x 146 | 80 | 450 |
| 3.ISB.080C.080.C.001 | 1016910A | 80 x 120 | 80 / 100 | 800 |
| 3.ISB.080C.080.CGA.001 | 1061785A | 80 x 120 | 80 / 100 | 800 |
| 3.ISB.080C.080.C.003 | 1061786A | 80 x 106,5 | 100 | 800 |
| 3.ISB.100C.130.CGA.001 | 1041139A | 130 x 70 | 125 | 1000 |
| Accessory | Description | Article | |
|---|---|---|---|
 | CONLESS Transmitter, 7-pin | 3.SxxC / 3.SxxG | to product |
 | Vibration sensor | 3.PU | to product |
 | Automatic balancing systems | to product |
