Article 3.BMT200-1.OP20 and 3.BMT200-2.OP20

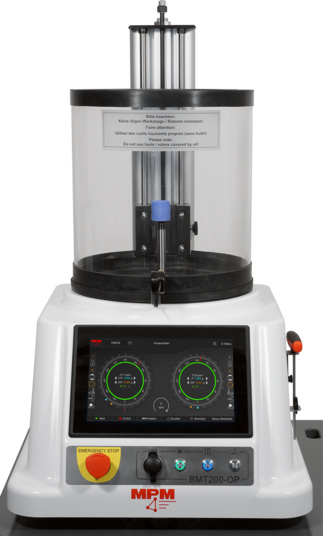

Stand alone balancing station BMT200.OP

No software installation needed. Especially for small tool holders up to HSK32 / SK30 in the high-speed range

  • Highest balancing accuracy at the best price
  • Especially for small tool holders up to HSK32 / SK30
  • Simplest operation for everyone
  • Smallest (<0.1 gram) unbalances detectable
  • Highest precision (< 0,1gmm)
  • Improved ease of use > 90%.
  • For 1-+ 2-plane balancing
  • Balancing methods: gram, degree, spread angle, fixed location, radial + axial drilling, milling
  • Display: gmm, gram, quality grade
  • Workpiece weight up to approx.: 750g
  • Workpiece-Ø up to approx. 270mm
  • Workpiece length up to approx. 280mm
  • Immediately usable
  • Test report at the touch of a button
  • Weight only approx. 50kg
  • HDMI interface for additional visualisation
    on an external monitor, only 3.BMT200-1(2).OP20

Advantages for profitable and successful operation

  • Design of your own user interface, e.g. for machine manufacturers.
    Source code for the customised user interface is supplied.
  • Flexible choice of operating system, e.g.: Linux, Windows from version 8.
  • Accessible via network (CAN bus-Raspberry network).
  • Multiple measurements possible during set-up and balancing.
  • The change error during tensioning is averaged by multiple measurements.
  • This helps in the case of defective mounts or clamping devices.
  • Selection of queries
    - before balancing: Series-#, Order-#, Inspector
    - after balancing: Remark and how the result before/after should be saved or printed
  • Data storage in CSV format for further data processing.
  • Clear formatting and assignment of dimensions, colours and texts.
  • Network, USB and HDMI connection for external screen.
  • Virtual keyboard for touch screens.

Catalog-# / Description

Catalog-# Order-# Description
3.BMT200-1.OP20 1062985A Balancing station for 1 plane
3.BMT200-1.OP20.HDMI 1067987A Balancing station for 1 plane with HDMI interface
3.BMT200-2.OP20 1063121A Balancing station for 1 + 2 planes
3.BMT200-2.OP20.HDMI 1067990A Balancing station for 1 + 2 planes with HDMI interface

Technical details

Technical data
Power supply 115/230V, 50-60Hz
Power input approx. 140W
Speed range 500...3000-1 ±1min-1
Operation Touchdisplay and Quick Start keys
Measuring accuracy approx. <0,5gmm/kg
Spindle adapter Ø 35mm
Weight range approx. 750g
Dimensions WxHxD approx. 460x798x591mm
Weight approx. 38kg
Temperature (operating): 0°C...+50°C
Temperature (storage): -10°C...+60°C
Humidity: 20%...50% rel. humidity
Operating pressure min. 6 bar max. 8 bar
Interfaces 2x USB, 1x RJ45 (LAN), 1x HDMI (only 3.BMT200-1(2).OP20.HDMI)

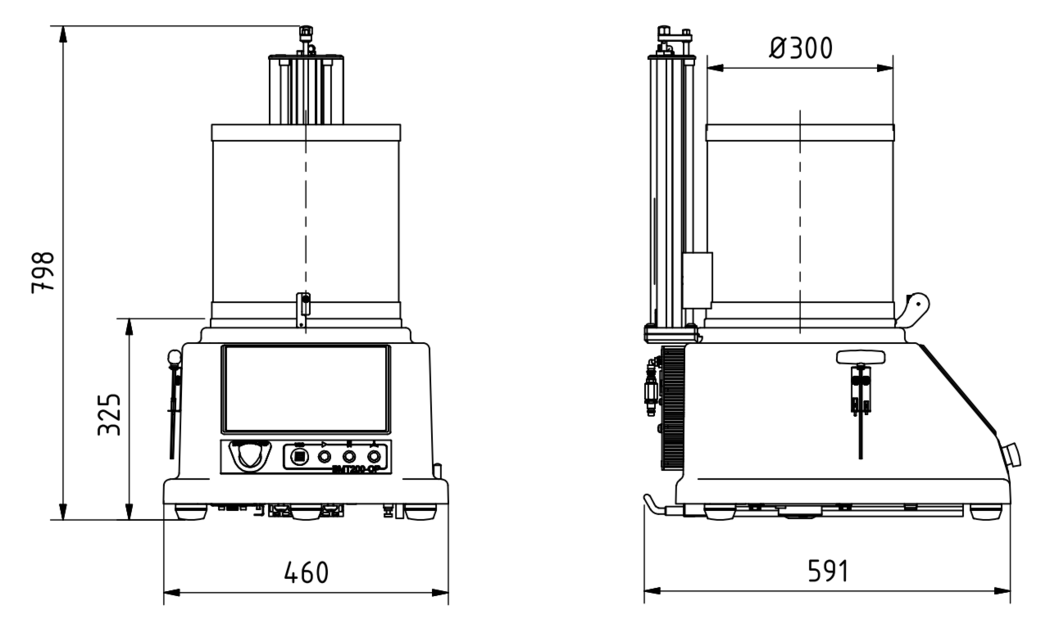

Dimensional drawings

Application example





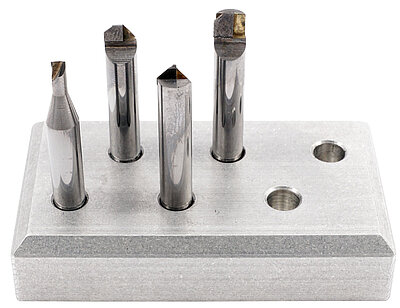

Ideally suited for balancing even small,
high-speed single-cutter tools with diamond cutting edges.

Product video

AccessoryDescription Article
Clamping adapter SK/BT 3.AD.SK/BTxxto product
Clamping adapter HSK 3.AD.HSKxxto product
Clamping adapter for collets 3.AD.P020.SZto product
Balancing workstation 3.BDto product
Precision pocket scales 3.CMto product
Grub screw sets 3.0.WGSto product
Vibration sensor for BMT station 3.PU.M1to product
Line laser 3.LP.04to product
Test masses for setup / calibration 3.TGto product
Balancing putty 3.0.WK02to product
