MPM

Article 3.UM340SM4.E/A.DPV1

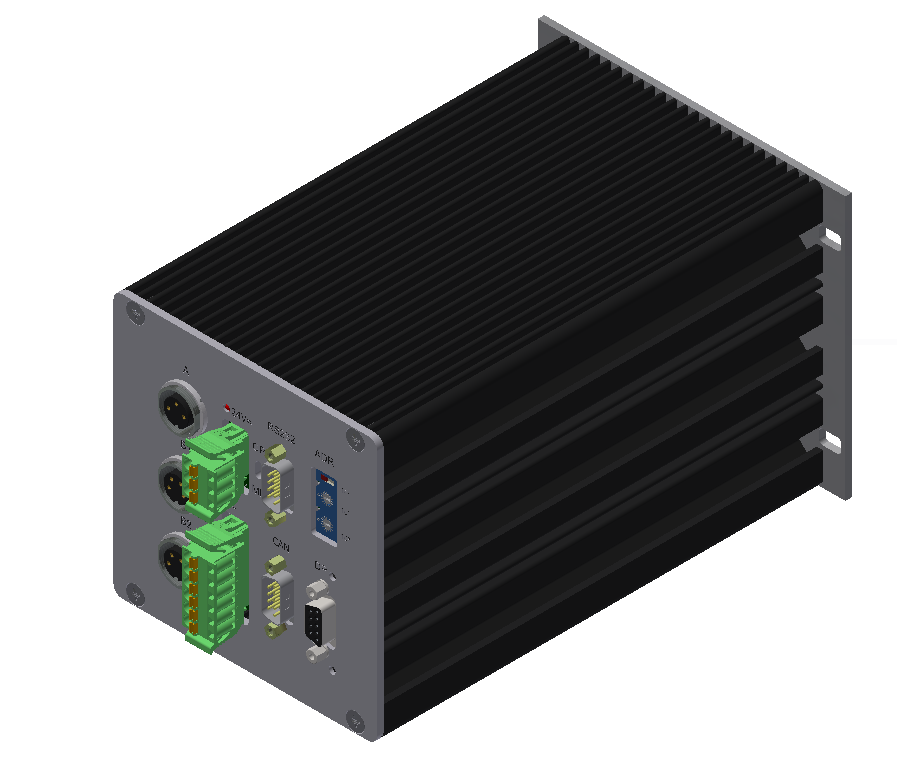

Unbalance measuring instrument, UM340.SM4

For the automation of production facilities

  • Fast unbalance measurement during spindle run-up
  • Fast switching outputs for unbalance limits
  • Unbalance measurement up to max. 2 planes (with 2 vibration sensors)
  • CAN bus for the connection of the operating and visualization unit
  • CAN-Bus / Profibus for the connection with the machine control system
  • Short delivery time

Selection guide

Catalog-# / Description

Catalog-# Order-# Description
3.UM340SM4.E/A.DPV1 1038593A Unbalance measuring instrument in SM4 housing

Technical details

Technical data
Operating voltage DC 24 V=
Power consumption approx. Pmax 30VA
Vibration sensor connection 4-pole, 4Vpp, max. +/- 10V=
Speed sensor NPN / PNP
Measuring range 60 - 18000 rpm
Operation and visualization - at the PC, or PC of the control via CAN-Bus with software Balcon 350
- by software of the machine manufacturer via Profibus

Dimensions W x H x D 120 x 120 x 206mm
Weight approx. 2,2 kg
Standard housing SM4, aluminium
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % relative humidity

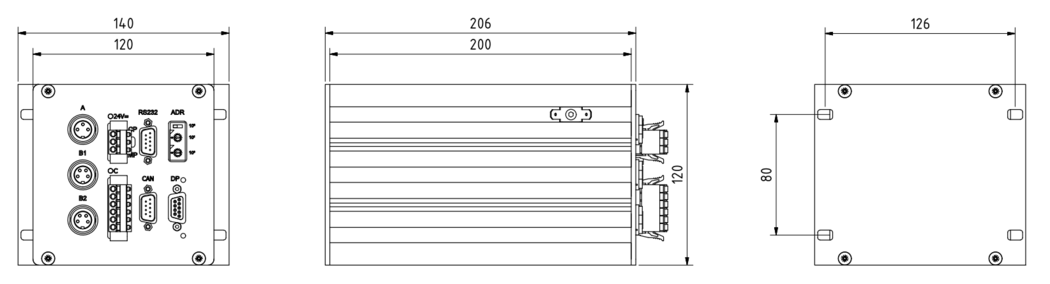

Dimensional drawings

Application example

  • Balancing system with balancing ring
    for production equipment
AccessoryDescription Article
Operating modules 3.BM340to product
CAN-USB adapter 3.CAN.USB.350to product
Data cable 3.DKC.B09xxto product
Vibration sensor 3.PUto product
Cable (extension), 4-pin
for vibration sensors
Socket / Plug
3.4xxBSto product
Speed sensors 3.DSto product
Cable (extension), 3-pole
for speed sensor
Socket / Plug
3.3xxBSto product
Magnetic inserts for speed measurement.
In conjunction with magnetic speed sensor
3.DS.03.3
3.0.M.430602to product
Balancing rings 3.WRto product
