Article 3.SH

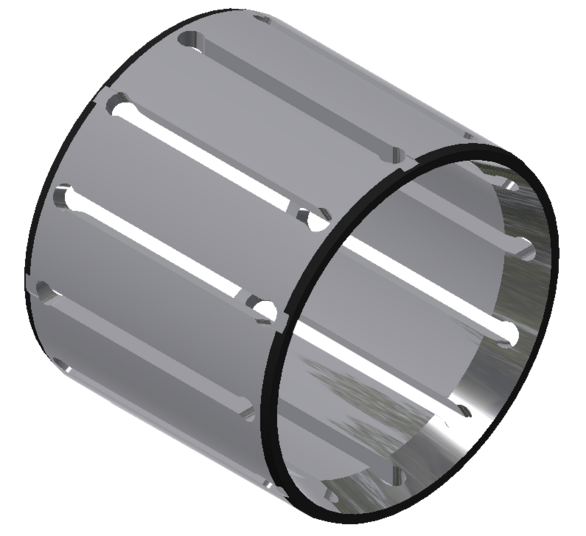

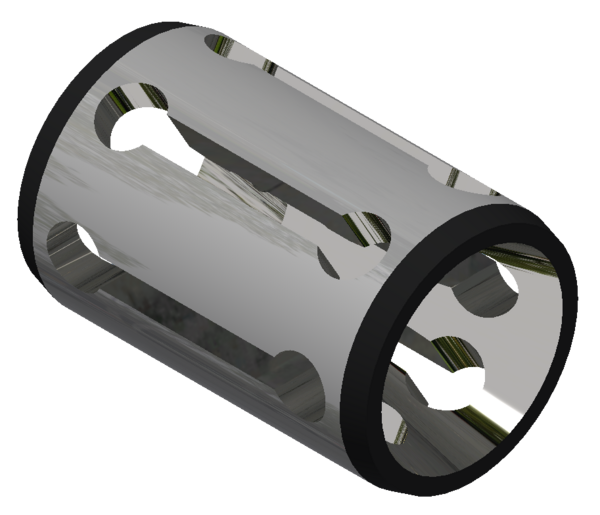

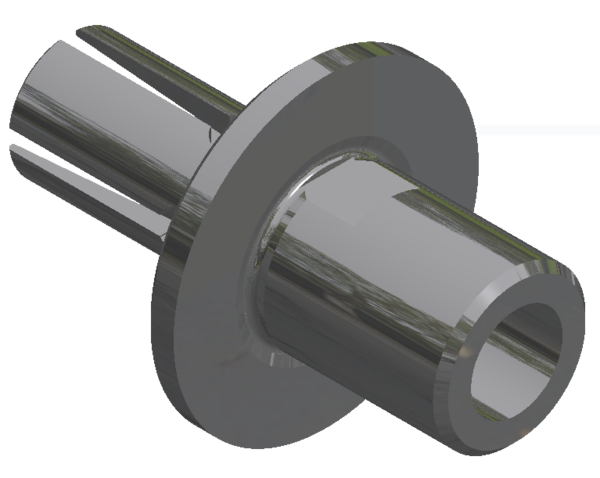

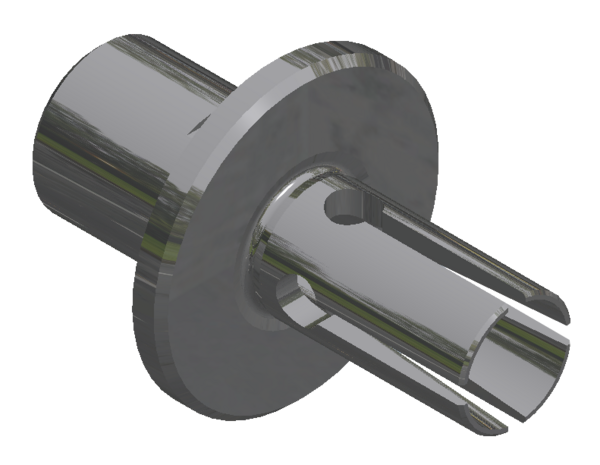

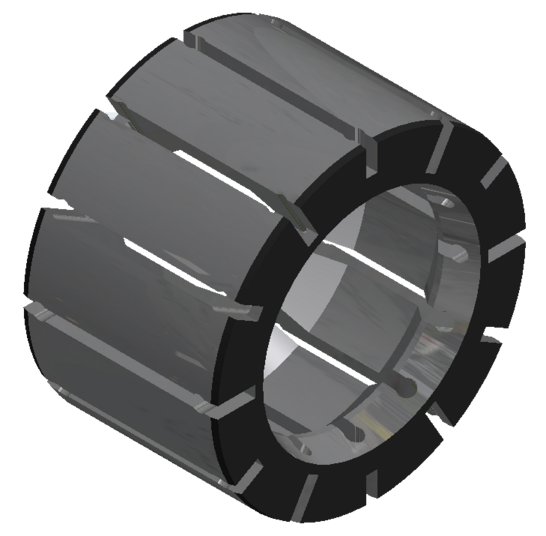

Expansion sleeves

for S40/TS40 and S100/TS100 balancing machines

  • Automatic infeed (pneumatic)

Catalog-# / Description

Catalog-# Order-# Clamping Ø [mm] Height [mm] For clamping set SPSH.__
3.SH07 1017728A 7 15 01
3.SH08 1017729A 8 15 01
3.SH09 1017730A 9 15 01
3.SH10 1017731A 10 15 01
3.SH11 1017733A 11 15 01
3.SH12 1017735A 12 15 01
3.SH12,5 1045698A 12,5 15 01
3.SH13 1017739A 13 15 01
3.SH14 1017740A 14 15 01
3.SH15 1017741A 15 25 02
3.SH16 1017742A 16 25 02
3.SH16,5 1017743A 16,5 25 02
3.SH17 1017744A 17 25 02
3.SH17,5 1017746A 17,5 25 02
3.SH18 1017747A 18 25 02
3.SH19 1017748A 19 25 02
3.SH20 1017750A 20 25 03
3.SH21 1017751A 21 25 03
3.SH22 1017752A 22 25 03
3.SH22,5 1043614A 22,5 25 03
3.SH23 1017754A 23 25 03
3.SH24 1017755A 24 25 03
3.SH24,5 1045764A 24,5 25 03
3.SH25 1017756A 25 25 03
3.SH25,4 1017757A 25,4 25 03
3.SH26 1017759A 26 25 03
3.SH27 1017760A 27 50 04
3.SH28 1017761A 28 50 04
3.SH29 1017762A 29 50 04
3.SH30 1017764A 30 50 04
3.SH31 1017765A 31 50 04
3.SH31,50 1017766A 31,5 50 04
3.SH31,75 1017767A 31,75 50 04
3.SH32 1017768A 32 50 04
3.SH33 1056106A 33 50 04
3.SH34 1017770A 34 50 05
3.SH35 1017771A 35 50 05
3.SH35,5 1017772A 35,5 50 05
3.SH36 1017773A 36 50 05
3.SH37 1048165A 37 50 05
3.SH38 1017774A 38 50 05
3.SH40 1017775A 40 50 05
3.SH41 1017777A 41 50 05
3.SH42 1017778A 42 50 05
3.SH43 1056483A 43 50 05
3.SH43,5 1017779A 43,5 50 05
3.SH44 1035815A 44 50 05
3.SH45 1017780A 45 50 06
3.SH46 1017781A 46 50 06
3.SH50 1017782A 50 50 06
3.SH51 1017786A 51 50 06
3.SH52 1017788A 52 50 06
3.SH53 1035463A 53 50 06
3.SH55 1017789A 55 50 06
3.SH56 1017790A 56 50 06
3.SH58 1053428A 58 50 06
3.SH60 1017791A 60 50 07
3.SH61 1017792A 61 50 07
3.SH62 1017793A 62 50 07
3.SH63 1017794A 63 50 07
3.SH65 1017795A 65 50 07
3.SH66 1017796A 66 50 07
3.SH67 1017797A 67 50 07
3.SH68 1033902A 68 50 07
3.SH69 1033903A 69 50 07
3.SH70 1017798A 70 50 07
3.SH71 1017799A 71 50 07
3.SH72 1017800A 72 50 07
3.SH73 1033898A 73 50 07
3.SH74 1033899A 74 50 07
3.SH75 1017801A 75 50 07
3.SH76 101802A 76 50 07
3.SH77 1017804A 77 50 07
3.SH80 1017805A 80 50 07
3.SH100 1017732A 100 50 09
3.SH115 1017734A 115 50 09
3.SH120 1017737A 120 50 09
AccessoryDescription Article
Clamping adapter for expansion sleeves
for S40 / TS40
3.AD.P.SHto product
Clamping adapter for expansion sleeves
for S100 / TS100
3.A.SHto product
Clamping sets for expansion sleeves 3.SPSHto product
Support plate for clamping sets 3.ALT.43-005-324to product
TS40-Station 3.BMT200-TS40to product
TS100-Station 3.BMT200-TS100to product
Grub screw sets 3.0.WGSto product
Precision pocket scales 3.CMto product
Test masses for calibration 3.TGto product
Balancing putty 3.0.WK02to product
