MPM

Article 3.S.05x

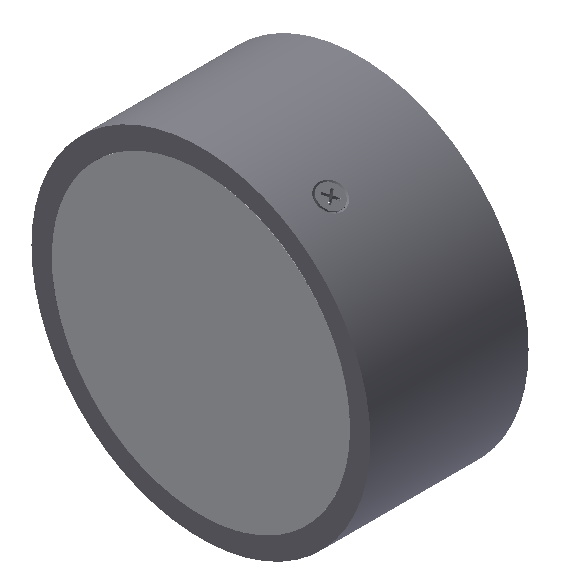

Transmitter for balancers
> Ø50mm

For controlling MPM balancers with CONLESS receivers

  • Plug 7-pin, for balancing electronics of series 3.AB3xx
  • Plug 6-pin, for balancing electronics of the series 3.AB2xx
  • Version "C" without AE acoustic emission
  • Version "G" with AE acoustic emission

Catalog-# / Description

Catalog-# Order-# Description
3.S.05 1017594A 6-pole, without cable, with plug, POM housing, without AE acoustic emission
3.S.05C 1053508A 7-pole, without cable, with plug, POM housing, without AE acoustic emission
3.S.05C.03 1017597A 7-pole, 3m, POM housing, without AE acoustic emission
3.S.05G 1023174A 7-pole, without cable, with plug, POM housing, with acoustic emission

Technical details

Technical data
Dimensions D x H Ø75x35mm
Case POM
Plug 6-pole at 3.S.05 for balancing electronics of series 3.AB2xx
Plug 7-pole at 3.S.05C and 3.S.05G for balancing electronics of series 3.AB3xx
Application note The distance to the receiver must be approx. 5mm. The active side of the transmitter must be oriented towards the receiver.

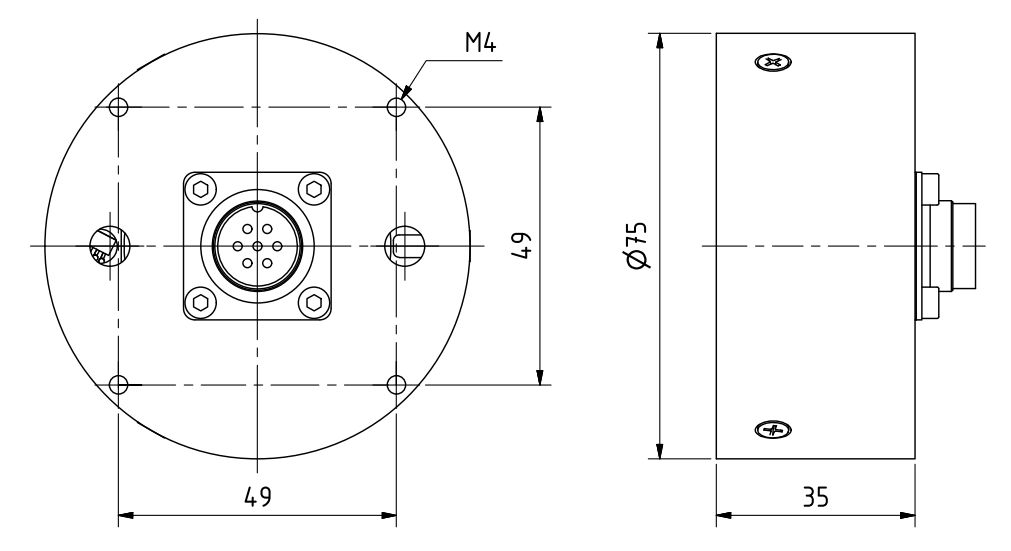

Dimensioned drawing

Further cable lengths on request.
