MPM

Article 3.S.43x.03

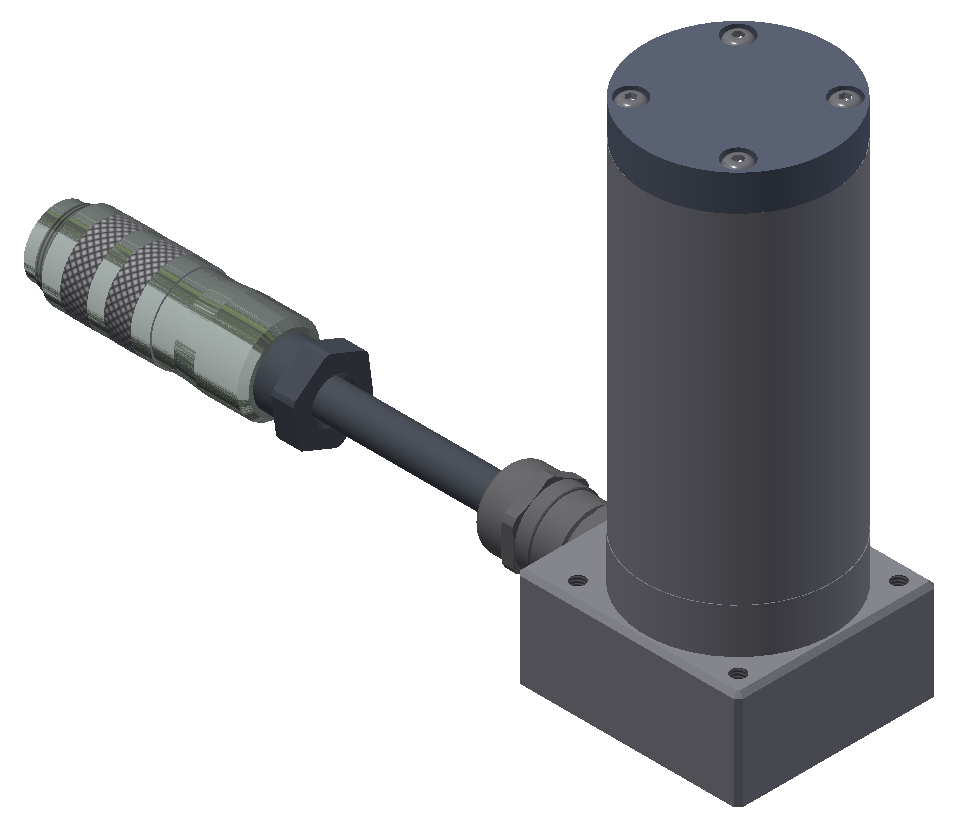

Transmitter for balancers
Ø42 and Ø50mm

For controlling MPM balancers with CONLESS receivers

  • Plug 7-pin, for balancing electronics of series 3.AB3xx
  • Plug 6-pin, for balancing electronics of the series 3.AB2xx
  • Version "C" without AE acoustic emission
  • Version "G" with AE acoustic emission

Catalog-# / Description

Catalog-# Order-# Description
3.S.43.V2.1.03 1017672A 6-pole, 3m, aluminium housing, without AE acoustic emission
3.S.43G.03 1017666A 7-pole, 3m, POM housing, with AE acoustic emission

Technical details

Technical data
Dimensions L x W x H 50x45x116mm
Case POM or aluminium, depending on version
Cable length 3m
Plug 6-pole at 3.S.43, for balancing electronics of series 3.AB2xx
Plug 7-pole at 3.S.43C and 3.S.43G, for balancing electronics of series 3.AB3xx
Application note Distance 2.5-3mm to the receiver must be observed. The active side of the transmitter must be oriented towards the receiver.

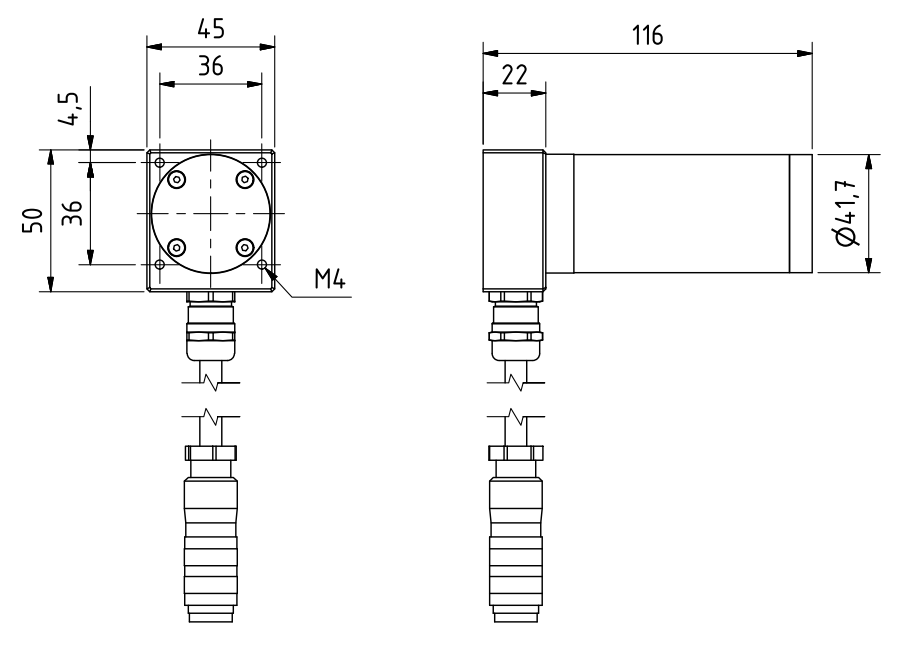

Dimensioned drawing

Further cable lengths on request.
