Speed sensor optical

MPM

Article 3.DS.03.2 and 3.DS.07.2

Speed sensor optical

For detecting spindle speeds.

With plug-compatible connection to the evaluation electronics.

Catalog-# / Description

Catalog-#	Order-#	Description
3.DS.03.2.0	1016490A	Without cable, 3-pole
3.DS.03.2	1016489A	With cable 5m, 3-pole
3.DS.07.2.0	1016515A	Without cable, 7-pole
3.DS.07.2	1016514A	With cable 5m, 7-pole

Technical details

Technical data
Switching distance Sn [mm]	1….8
Case	M8x1, brass, nickel-plated
Length L [mm] (approx.)	49,5
Attachment	2x nut M8x1
Operating voltage	10V….15V
Exit	NPN
Connection	Built-in plug, 3-pole (3.DS.03__), for mobile devices
	Built-in plug 7-pin (3.DS.07__), for machine-integrated devices
Reference mark	Light / dark surface
	Reflector band
	The reflector size depends on the speed. The higher the speed, the larger the reflector area to be selected!

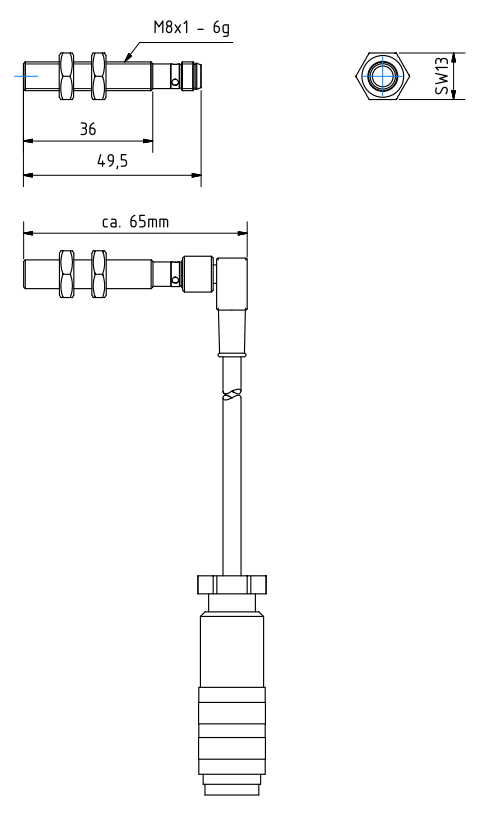

Dimensioned drawing

Application examples

Schematic diagram

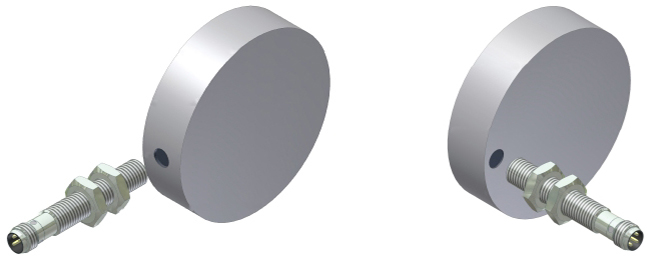

All speed sensors can be mounted radially or axially.
Optical sensors must be fitted with reflectors that provide good light/dark contrast.

Accessory	Description	Article
	Cable, 3-pole Angled socket / plug	3.3xxWBS.DS.1	to product
	Cable, 3-pole Socket / Plug	3.3xxBS.DS.1	to product
