MPM

Article 3.PU.M1.4.x

3.PU.M1.4.x

  • For the absorption of unbalance oscillations which occur with
    spindle rotation occur.
  • Standard vibration sensors 3.PU.M1.. to 3.PU.M5.. and 3.PU.4...
    are accelerometers which can be used at speeds from
    approx. 800min-1 - 18 000min-1 are to be preferred.

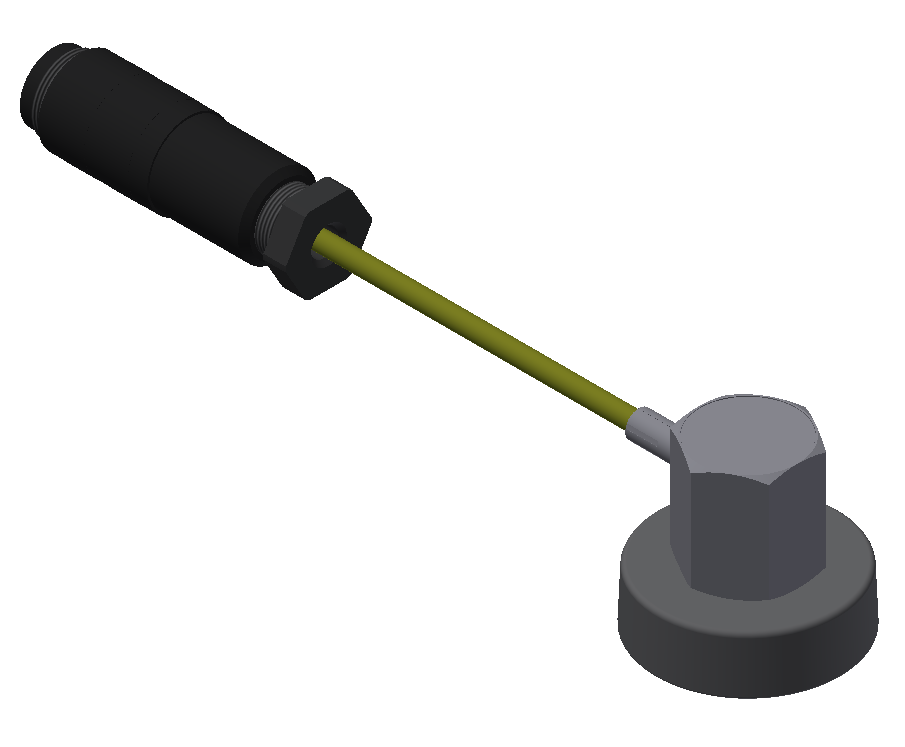

  • Vibration sensor with magnet.
  • With plug-compatible connection to the evaluation electronics.

Other cable lengths on request.

Catalog-# / Description

Catalog-# Order-# Description
3.PU.M1.4.1 1017456A Cable length 1m, 4-way
3.PU.M1.4.2 1017468A Cable length 2m, 4-way
3.PU.M1.4.3 1013523A Cable length 3m, 4-way
3.PU.M1.4.4 1017476A Cable length 4m, 4-way
3.PU.M1.4.5 1017477A Cable length 5m, 4-way

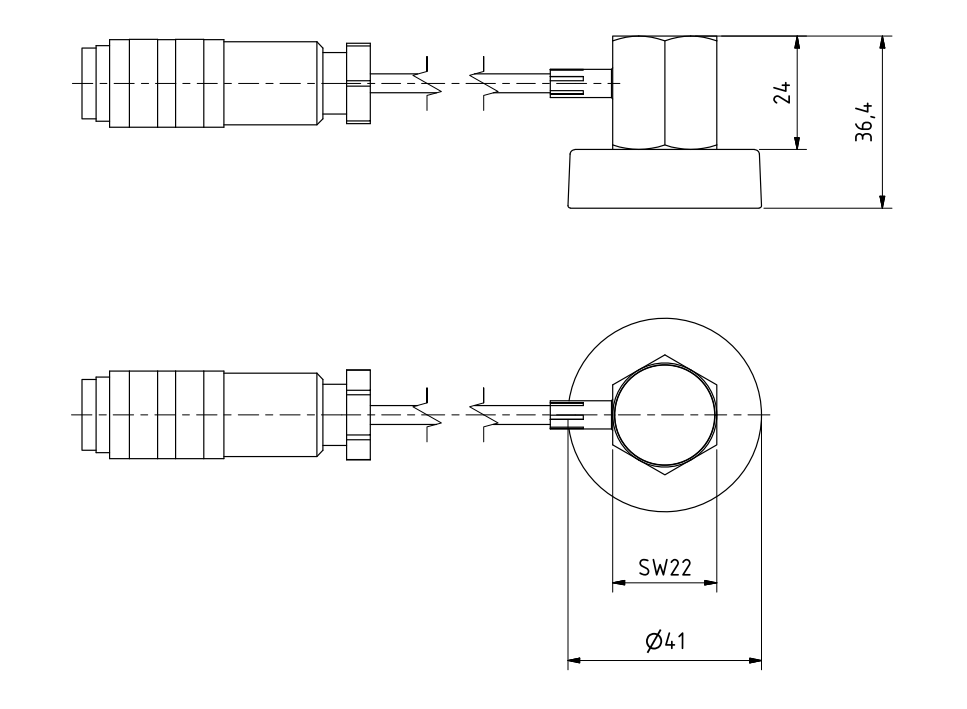

Dimensional drawing

AccessoryDescription Article
Magnet stands 3.PU.xxto product
