Article 3.CS210M

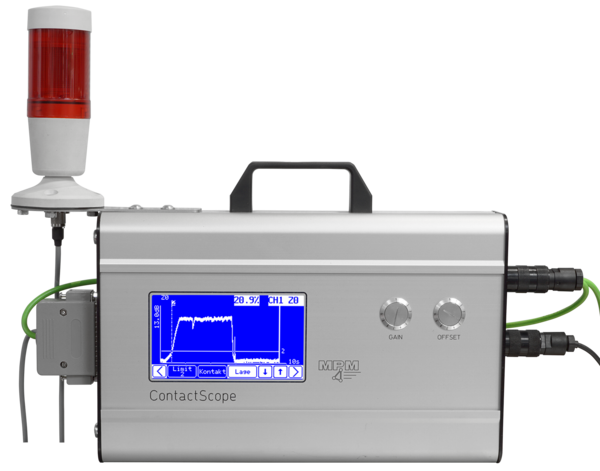

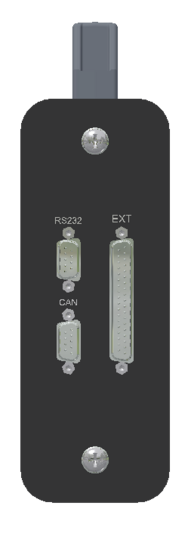

ContactScope 3.CS210M

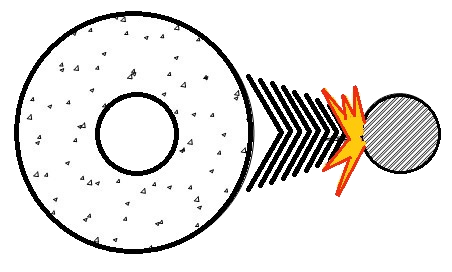

Visualization and control of grinding and dressing processes

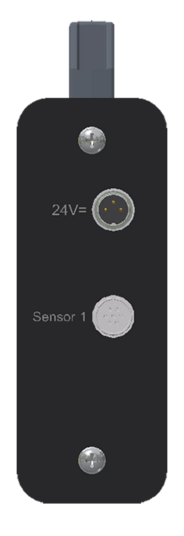

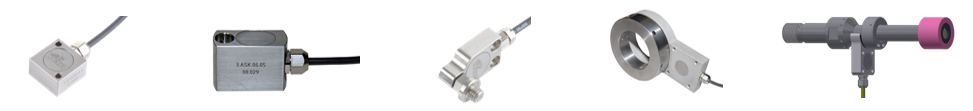

- With 1-channel AE acoustic emission connection for AE sensors (contact or contactless)
- Adjustable gain and offset
- Graphical representation
- Lightning fast (0.5ms) signal transmission to the machine control system
- Up to 16 different measuring tasks (cycles) can be parameterized
- Limit overruns or underruns can be evaluated. Up to 3 limits per cycle
- The cycles are selected by the machine control via digital inputs.
- The measuring process is started by a signal from the machine control system.
- Compact, cost-effective unit
- Short delivery time
Catalog-# / Description
| Catalog-# | Order-# | Description |
|---|---|---|
| 3.CS210M.E/A.24 | 1050518A | Without integrated acoustic emission amplifier |
| 3.CS210M.V1A.E/A.24 | 1016354A | With 1 integrated acoustic emission amplifier Filter type A |
| 3.CS210M.V1E.E/A.24 | 1016355A | With 1 integrated acoustic emission amplifier Filter type E |
| 3.CS210M.V1T.E/A.24 | 1039584A | With 1 integrated acoustic emission amplifier Filter type T |

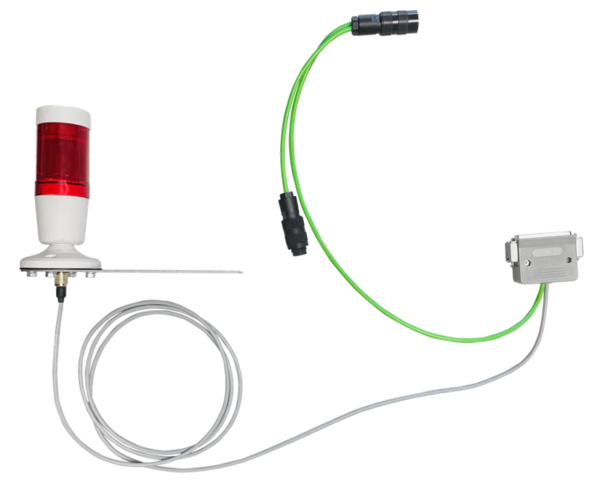

| 3.CS.KS01 | 1068627A | Acoustic module with LED for 3.CS210M |
Technical details
| Technical data | |
|---|---|
| Operating voltage | DC 24 V= |
| Power input approx. | 15 W |
| Operation | Touchscreen |
| Measuring range | 0…10 V, 2 s…60 min |

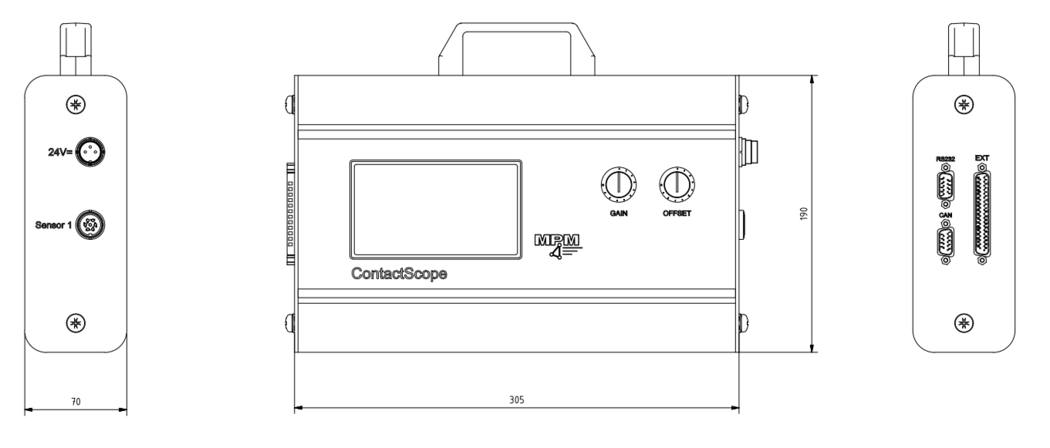

| Dimensions W x H x D | 305 x 190 x 70 mm |
| Weight approx. | 3 kg |
| Standard housing | PROFILINE |
| Operating ambient temperature | 0 °C to +50 °C |
| Storage ambient temperature | -10 °C to +70 °C |
| Air humidity | 20 % to 50 % rel. humidity |
Application examples

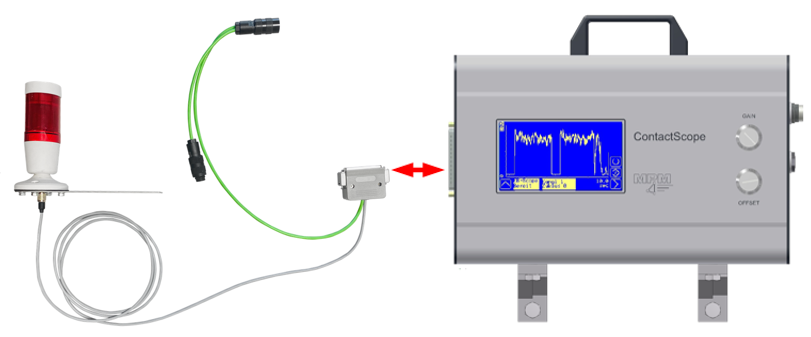

The "PLUS" for grinding machines,
so that the grinding detection is immediately (0.5ms) acoustically / optically signaled:
| Acoustic module with LED | Mobile Acoustic emission module | Mounting feet |
|---|---|---|
| 3.CS.KS01 (1068627A) | 3.CS210M.V1A.E/A.24 (1016354A) | 3.MS.PL01 (1040756A) |
