Article 3.AB50P01.1.C.EXT.24 and 3.AB50P01.1.C.EXT.230

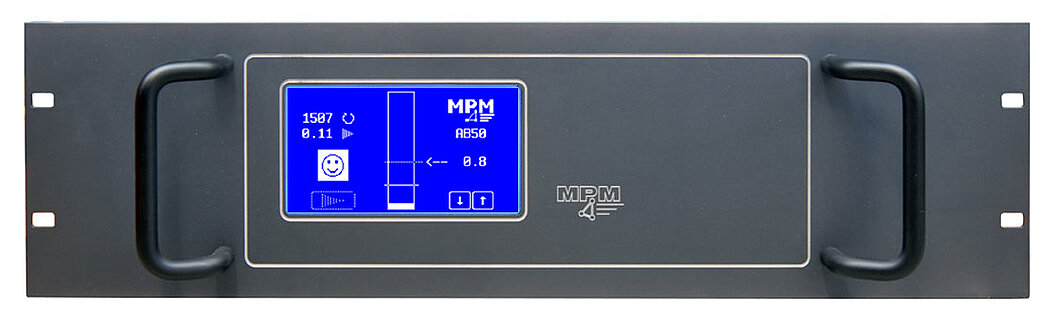

Balancing electronics, automatic AB50 (CONLESS)

For fully automatic balancing on grinding machines with MPM-mounted or spindle-mounted balancing units with CONLESS control and 19" front panel

  • CONLESS control
  • Balcon50 software for balancing without AE acoustic emission
  • Operation via touch screen
  • Compatible with all MPM CONLESS balancers
  • CAN-Bus data output
  • Housing 19"
  • Short delivery time

Selection guide

Catalog-# / Description

Catalog-# Order-# Description
3.AB50P01.1.C.EXT.24 1015829A Balancing electronics AB50 with 19" front panel, 24V
3.AB50P01.1.C.EXT.230 1038392A Balancing electronics AB50 with 19" front panel, 230V

Technical details

Technical data
Operating voltage 24 V= / 230V~
Power consumption approx. 73 VA
CONLESS transmitter connection 7-pin
Vibration sensor connection 4-pole
External output 5-pole, D-SUB socket 9-pole
Operation Touchscreen
Display accuracy ±1 digit
Dimensions W x H x D [mm] 482 x 134 x 252
Weight approx. 4 kg
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % relative humidity

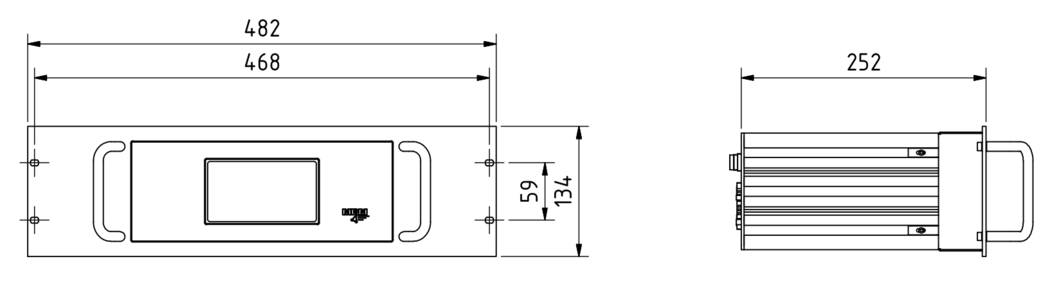

Dimensional drawings

Application examples

  • Automatic balancing system AB50
    with CONLESS and internal balancer type ESB-F
  • Automatic balancing system AB50
    with internal balancer ISB type B
AccessoryDescription Article
Vibration sensor 3.PUto product
Cable (extension), 4-pin
for vibration sensors
Socket / Connector
3.4xxBSto product
CONLESS transmitter, 7-pin
without AE acoustic emission
3.SxxCto product
Cable (extension), 7-pin
for CONLESS transmitters
Socket / Connector
3.7xxBSto product
CONLESS receiver, 3-pole
without AE acoustic emission
3.Exxto product
Spiral cable, 3-pole
Connection between electronics and ISB type A and B
For ISB apparatus without AE acoustic emission signal
3.3.Sxx.SSto product
Built-in balancer
without AE acoustic emission signal
3.ISBto product
Built-in balancers
without AE acoustic emission signal
for use in HSK receptacles.
From HSK63 to HSK125
3.ISBxxxCto product
Add-on balancers
without AE acoustic emission signal
3.ESBto product
