Article 3.AB50SM4.C

Balancing module, automatic CONLESS

For fully automatic balancing on grinding machines

  • Contactless CONLESS control
  • Compatible with all MPM-CONLESS balancers
  • CAN-Bus data output
  • Automatic balancing in 1 plane (with 1. vibration sensor)
  • Short delivery time

Selection guide

Catalog-# / Description

Catalog-# Order-# Description

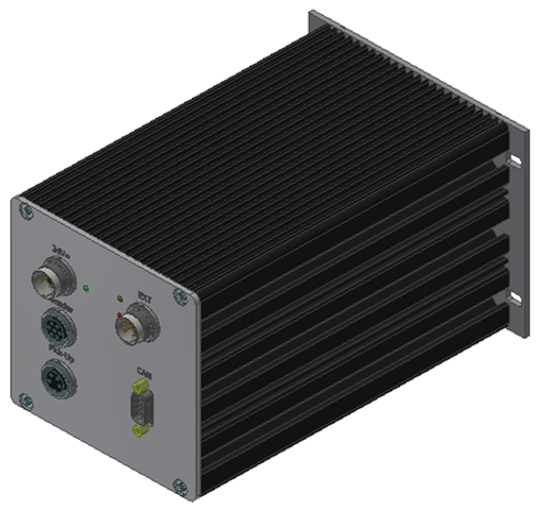

3.AB50SM4.C 1015832A Balancing electronics AB50 in SM4 housing for CONLESS

Technical details

Technical data
Operating voltage DC 24 V=
Power consumption approx. 60W
CONLESS transmitter connection 7-pin
Vibration sensor connection 4-pole, 5Vpp, max. +/- 10V=
External output 5-pole
Connection to adjustment module CAN bus, 9-pin D-Sub
Dimensions W x H x D 120 x 120 x 200mm
Weight approx. 2 kg
Standard housing SM4, aluminium
Ambient temperature during operation 0 °C to +50 °C
Ambient temperature during storage -10 °C to +60 °C
Humidity 20 % to 50 % relative humidity

Dimensional drawings

Application examples


Automatic balancing system AB50
with CONLESS and external balancer type ESB-F



Automatic balancing system AB50
with internal balancer ISB type B



AccessoryDescription Article
Operating modules
for AB50
3.BM50to product
Data cable 3.DKC.B09xxto product
Vibration sensor 3.PUto product
Cable (extension), 4-pin
for vibration sensors
Socket / Plug
3.4xxBSto product
CONLESS transmitter, 7-pin
without AE structure-borne sound
3.SxxCto product
Cable (extension), 7-pin
for CONLESS transmitters
Socket / Plug
3.7xxBSto product
CONLESS receiver, 3-pole
without AE structure-borne sound
3.Exxto product
Spiral cable, 3-pole
Connection between electronics and ISB type A and B
For ISB apparatus without AE structure-borne sound signal
3.3.Sxx.SSto product
Built-in balancer
without AE structure-borne sound signal
3.ISBto product
Built-in balancers
without AE structure-borne sound signal
for use in HSK receptacles.
From HSK63 to HSK125
3.ISBxxxCto product
Add-on balancers
without AE structure-borne sound signal
3.ESBto product
